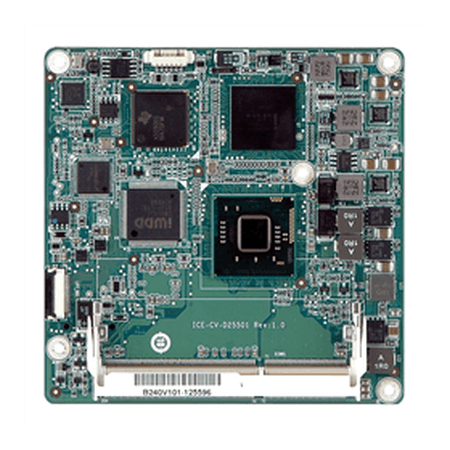

ICE-CV-D25501/N26001

COM Express Rev 2.0 Basic/Compact Type 6 Modules, Intel® Atom™ N2600/D2550 Processor

  • Overview

    ● Intel® Atom™ N2600/D2700 processors supported
    ● Intel® GMA integrates high-performance graphics and media processing
    ● Supports DDR3 & DDR3L (1.35V) 1066/800 MHz, up to 2 GB
    ● 18/24-bit single-channel LVDS, analog CRT and two DDI supported
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Display OutputVGA integrated in the Intel® N2600/D2550 (signal to baseboard)
      1 x CRT (up to 2048x1536@75Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      I/O Interface
      EthernetRTL 8111E GbE
      Expansion4 x PCIe x1 signal (to baseboard)
      System
      ChipsetIntel® NM10
      CPUIntel® Atom™ D2550 dual-core processor
      1.86GHz (2 x 512 L2 cache)
      Memory Max.One 204-pin 1066/800 MHz DDR3 SDRAM SODIMM supported (D2550 supports 1066 MHz
    • Ordering Info.

      Item No. Description
      ICE-CV-D25501-R10COM Express Rev 2.0 Basic/Compact Type 6 Module,IntelAtom D2550 Processor,VGA/LVDS,DDI,GbE,SATAII,USB 3.0 and Audio,RoHS
      ICE-CV-N28001-R10COM Express Rev 2.0 Basic/Compact Type 6 Module,IntelAtom N2800 Processor,VGA/LVDS,DDI,GbE,SATAII,USB 3.0 and Audio,RoHS
      ICE-CV-N26001-R10COM Express Rev 2.0 Basic/Compact Type 6 Module,IntelAtom N2600 Processor,VGA/LVDS,DDI,GbE,SATAII,USB 3.0 and Audio,RoHS
