GRAND-AL

Intel® Celeron® J3455 4-core 1.5GHz (burst up to 2.3GHz)

  • Overview

    ● Intel® Celeron® J3455 quad-core 1.5GHz CPU with AES-NI Encryption
    ● 2 x SODIMM Slots, Install up to 8GB memory with 2 x 4GB DIMMs
    ● 1 x PCIe x2 slot can support 10GbE network card
    ● Storage expandable via USB3.0, up to 200TB
  • Features

    GRAND-AL

    The GRAND-AL is a rackmount storage server that easily fits int o a standard 19-inch rack, providing an ideal storage solution in the server room for small and medium businesses. The GRAND-AL comes with a PCIe slot for boosting potential applications: the QNAP QM2 expansion card can be installed to add an M.2 SSD cache/10G bE connectivity, a compatible wireless card can be installed to use the GRAND-AL as a wireless access point, and a USB 3.1 10Gb ps card can be added for easier backup to/from multiple external storage. The GRAND-AL also provides a wide range of value-added features: 4K video playback and real-time transcoding; and web automation services with IFTTT.

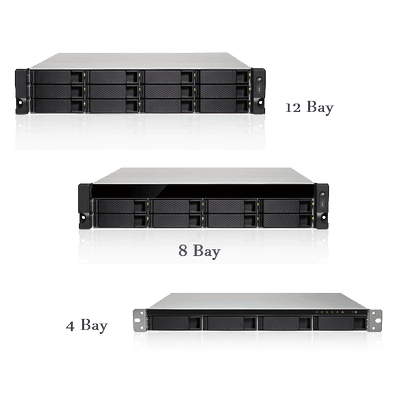

    GRAND-AL-rackmount-storage-server
    Intel CPU with AES-NI Encryption

    Intel® Celeron® J3455 quad-core 1.5GHz CPU with AES-NI Encryption

    Powered by the latest 14 nm Intel® Celeron® J3455 quad-core 1.5GHz processor (burst up to 2.3 GHz), up to 8GB DDR3L RAM, four Gigabit LAN ports, and SATA 6Gb/s, the GRAND-AL runs tasks smoothly and quickly with up to 415 MB/s read/ write speeds. The GRAND-AL features Intel® AES-NI accelerated encryption to drive transfer speeds of up to 416 MB/s with AES 256-bit encryption for both full storage server volumes and shared folders, boosting system performance while ensuring the confidentiality of sensitive business data stored in the storage server.

    Extend Storage Server Functionality with PCIe Expansion

    The GRAND-AL has a PCIe expansion slot, providing flexibility in extending storage server functionality and potential applications. Install a QNAP QM2 card to provide M.2 SSD caching/10GbE connectivity, or use the GRAND-AL as a wireless access point by installing a compatible wireless network card, or boost the USB connectivity of the GRAND-AL by installing a USB 3.1 10Gbps card.

    Extend Storage Server Functionality with PCIe Expansion
    Storage server certified by QNAP

    QNAP Certified

    The Grand series are certified by the QNAP. QNAP Systems, Inc. was founded in 2004 as leading network attached storage provider and excelled at both hardware design & software engineering. QNAP provides a comprehensive range of cutting-edge Network-attached Storage (NAS) based on the principles of usability, high security, and flexible scalability leading to win the numerous international prizes. QNAP offers quality NAS products for home and business users with the amount of around 4 million worldwide.

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form Factor 2U 1U, Rackmount
      System
      CPU Intel® Celeron® J3455 4-core 1.5GHz (burst up to 2.3GHz)
      Memory Slot: SODIMM x 2
      Memory Max. 8GB
      Cooling method / System Fan 12B : DC 2 x 70mm, 12V
      08B : DC 2 x 70mm, 12V
      04A : DC 2 x 40mm, 12V
      Physical Characteristics
      Rack Height 2U 12bay, 8bay
      1U 4bay
      Dimensions (LxWxH) (mm) 12B : 89(H) x 482(W) x 534(D) mm
      08B : 89(H) x 482(W) x 534(D) mm
      04A : 44(H) x 439(W) x 499(D) mm
      Net Weight 12B : 16.14kg
      08B : 11.02kg
      04A : 7.63kg
      Storage
      Storage 3.5” HDD Bay(SATA 6Gb/s, 3Gb/s HDD or SSD; Hot-swappable
      12B: 12 Bay
      08B: 8 Bay
      04A: 4 Bay)
      1 x eMMC
      I/O Interface
      Display Output 1 x HDMI(1.4b)
      Ethernet 4 x LAN(Gbe)
      I/O Interface 4 x External USB 3.0(Rear)
      Expansion 1 x PCIe x 4
      Power
      Power Consumption 12B : In operation: 83.52W
      08B : In operation: 82.31W
      04A : In operation: 39.86W
      Power Supply 12B : 350W, 100-240V, 250W (x2), 100-240V (redundant)
      08B : 250W, 100-240V, 250W (x2), 100-240V (redundant)
      04A : 250W, 100-240V, 250W (x2), 100-240V (redundant)
      Environment
      Operating Temperature 0~40˚C
      Humidity 5 to 95% non-condensing, wet bulb:27˚C.
    • Ordering Info.

      Item No. Description
      GRAND-AL-04A-R10 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 250W single PSU, RoHS
      GRAND-AL-04A-RP-R10 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 250W redundant PSU, RoHS
      GRAND-AL-08B-R10 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 250W single PSU, RoHS
      GRAND-AL-08B-RP-R10 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 250W redundant PSU, RoHS
      GRAND-AL-12B-R10 2U 12Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 350W single PSU, RoHS
      GRAND-AL-12B-RP-R10 2U 12Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with Intel® Celeron® J3455, 250W redundant PSU, RoHS
    • Package Contents

      • Ethernet Cable x 2

      • Power cord x 2

      • Flat head screw (for 2.5" HDD)

      • Flat head screw (for 3.5" HDD)
