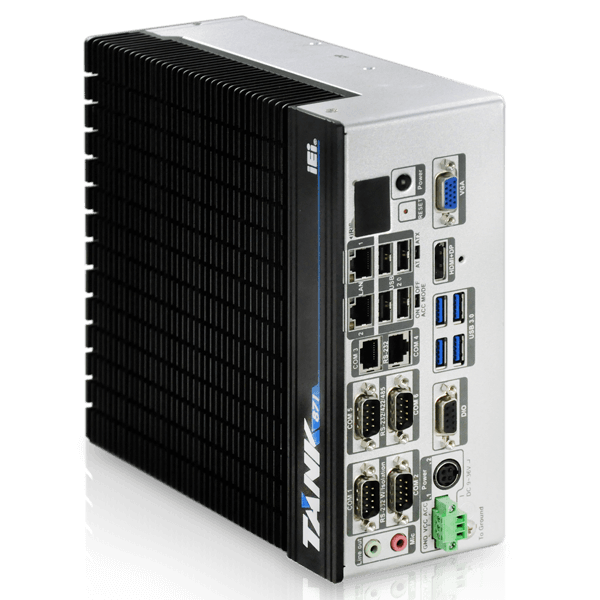

TANK-871-Q170

High-Performance 6th/7th Generation Intel® Core™ Processor

  • Overview

    ● 6th/7th Gen Intel® Core™ processor platform with Intel® Q170 chipset and DDR4 memory
    ● Triple independent display with high resolution support
    ● Rich high-speed I/O interfaces on one side for easy installation
    ● IEI iRIS-2400 solution
  • Features

    thin-fanless-embedded-system

    I/O Interface

    thin-fanless-embedded-system-input-output

    Dimensions

    thin-embedded-system-dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor ●CPU:
      Intel 7th Gen Core CPU &
      Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
      Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
      ●Chipset: Intel® Q170
      ●System Memory:
      2 x 260-pin DDR4 SO-DIMM, pre-installed one 4GB (system max: 32GB)
      ●Power:
      Input - DC Jack: 9 V~36 V DC, Terminal Block: 9 V~36 V DC
      Consumption: 19 V@3.68 A (Intel® Core™ i7-6700TE with 8 GB memory)
      ●Reliability:
      Operating Shock - Half-sine wave shock 5G; 11ms; 100 shocks per axis
      Operating Vibration - MIL-STD-810G 514.6 C-1 (with SSD)
      Safety/EMC - CE/FCC
      ●IPMI: 1 x iRIS-2400 (optional)
      I/O Interface
      I/O Ports ●USB: 4 x USB 3.0, 4 x USB 2.0
      ●Ethernet: 2 x RJ-45
      LAN1 (iRIS): Intel® I210 PCIe controller
      LAN2: Intel® I219LM PCIe controller
      ●COM Port:
      4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection)
      2 x RS-232/422/485 (DB-9)
      ●Digital I/O: 8 bit Digital I/O, 4 bit input / 4 bit output
      ●Display:
      1 x VGA (Up to 1920 x 1200@60Hz)
      1 x HDMI/DP (Up to 3840x2160@30Hz / 4096×2304@60Hz)
      1 x iDP (optional)
      ●Audio: 1 x Line-out, 1 x Mic-in
      Expansion Slots
      Expansion Slots PCIe Mini:
      1 x Half-size PCIe Mini slot
      1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
      System
      Cooling method / System Fan Fanless
      Drive Bays 2 x 2.5“ SATA 6Gb/s HDD/SSD bay (RAID 0/1 support)
      Indicator&Buttons
      Buttons 1 x Power Button
      1 x Reset Button
      1 x AT/ATX Switch
      1 x ACC Mode
      Physical Characteristics
      Construction Extruded aluminum alloys
      Color
      Color Black C + Silver
      Dimensions
      Dimensions 82.2 x 255.2 x 204 (WxDxH) (mm)
      Weight
      Weight 3.5 kg/4.5 kg
      Environment
      Operating Temperature i7-6700TE -20°C ~ 45°C with air flow (SSD)
      i5-6500TE -20°C ~ 60°C with air flow (SSD)
      Humidity 10% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      TANK-871-Q170i-i5/4G-R10 Ruggedized Fanless embedded system with Intel® Core i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC, RoHS
      TANK-871-Q170i-i7/4G-R10 Ruggedized Fanless embedded system with Intel® Core i7-6700TE 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC, RoHS
    • Package Contents

      • 1 x Chassis Screw

      • 1 x Mounting Bracket
