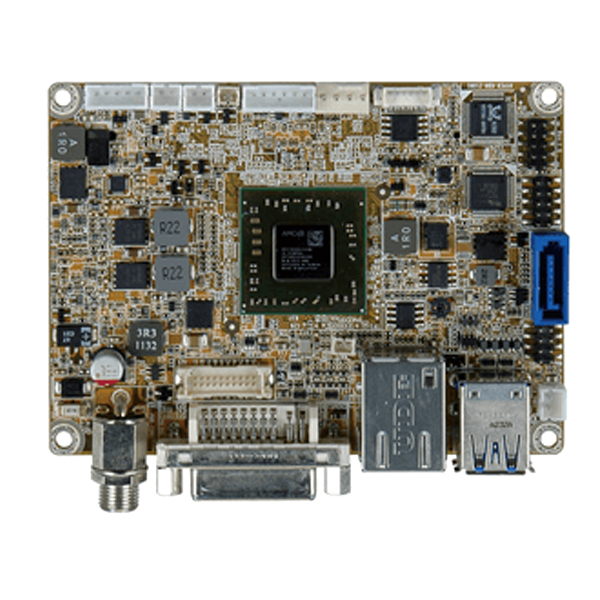

HYPER-KBN

Pico-ITX SBC Supports AMD® Embedded G-Series SoC

  • Overview

    ● Pico-ITX form fator with AMD® Embedded G-Series SoC supports DDR3/DDR3L up to 1600 MHz memory
    ● 12V only single voltage design for AT/ATX power by DC power jack
    ● DVI-I and 18-bit singel-channel LVDS support for dual display
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      DisplayDVI-I (DVI-D up to 1920x1200@60Hz, VGA up to 2048x1536@60Hz)
      18-bit single-channel LVDS (up to 1600x900@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature0°C ~ 60°C
      I/O Interface
      AudioRealtek AL662 HD Audio codec
      1 x Analog audio (2x5 pin)
      EthernetLAN: Realtek RTL8111E controllers with ASF2.0 supported
      I/O Interface
      I/O Interface2 x USB 3.0
      1 x Internal RS-232
      2 x Internal USB 2.0
      Power
      Power consumption+12V@1.45A (AMD GX-415GA 1.5GHz CPU with one 2GB 1333 MHz DDR3 memory)
      System
      CPUGX-415GA on-board SoC (1.5GHz, quad-core, 2MB cache, TDP=15W)
      GX-210HA on-board SoC (1.0GHz, dual-core, 1MB cache, TDP=9W) (support fanless solution)
      GX-420CA on-board SoC (2.0GHz, quad-core, 2MB cache, TDP=25W)
      GX-217GA on-board SoC (1.65GHz, dual-core, 1MB cache, TDP=15W)
      CPU SocketOn Board
      Memory Max.One 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMM
      supports up to 8GB
      Storage1 x SATA 6Gb/s with 5V SATA power connector
      Watchdog Timer
      Watchdog TimerSoftware programmable, support 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      HYPER-KBN-4151-R10PICO-ITX SBC with AMD G-Series GX-415GA SoC processor,DDR3 DVI-I/LVDS,GbE,USB 3.0,SATA 6Gb/s,HD Audio and RoHS
      HYPER-KBN-2101-R10PICO-ITX SBC with AMD G-Series GX-210HA SoC processor,DDR3 DVI-I/LVDS,GbE, USB 3.0,SATA 6Gb/s,HD Audio and RoHS
    • Package Contents

      • 1 x HYPER-KBN single board computer

      • 1 x Audio cable

      • 1 x RS-232 cable

      • 1 x SATA with 5V output cable kit

      • 1 x Special heatsink

      • 1 x One Key Recovery CD

      • 1 x QIG

      • 1 x Utility CD
