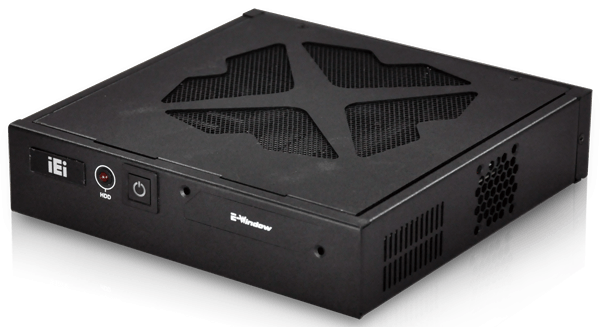

EBC-3300

Embedded Chassis for IEI thin Mini-ITX SBC

  • Overview

    ● Designs for thin type Mini-ITX SBC with single voltage input
    ● Total height 42mm for space critical application
    ● One 2.5” hard drive capacity
    ● Flexible E-Window tool kit support
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor Refer to SBC
      I/O Interface
      I/O Ports 2 x USB3.0
      2 x LAN
      Refer to SBC
      Expansion Slots
      Expansion Slots 2 slot
      System
      Drive Bays 1 x 3.5" (front accessible/HDD)
      Indicator&Buttons
      Buttons Power switch
      Indicators Power, HDD
      Physical Characteristics
      Construction Heavy duty metal
      Color
      Color Black
      Dimensions
      Dimensions 190 x 190 x 43
      Weight
      Weight 1 kg/ 2kg
      Environment
      Operating Temperature -10°C ~ 50°C
      Humidity 10% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      EBC-3300-BW-R10 Embedded chassis for tKINO-BW with one 2.5" SATA hard drive bay, IO bracket, one LED cable, one power switch cable and RoHS
      EBC-3300-AL-R10 Embedded chassis for tKINO-AL with one 2.5" SATA hard drive bay, IO bracket, one LED cable, one power switch cable and RoHS
      EBC-3300-ULT3-R10 Embedded chassis for tKINO-ULT3 with one 2.5" SATA hard drive bay, IO bracket, one LED cable, one power switch cable and RoHS
    • Package Contents

      • 1 x QIG

      • 1 x Wall mount bracket kit

      • 1 x Screw set
