POC-W24C-ULT3

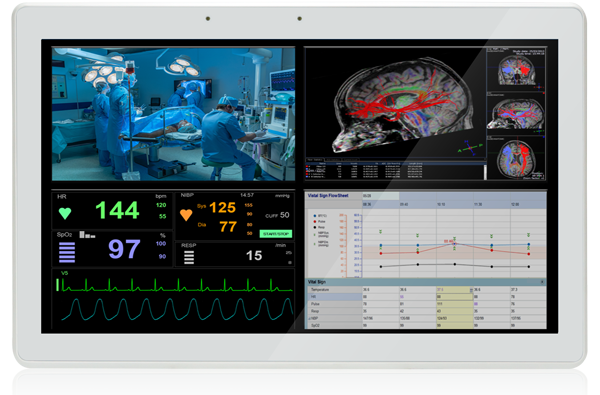

24” Medical Panel PC with 6th Generation Intel® mobile ULT Core™ i7/i5/Celeron® processor

End of Life

End of Life Notice

* Effective Date: 2022/06/16

» 24” fanless FHD medical grade panel PC
» Intel® Core™ i5-6300U (Skylake) processor
» Certification: CE,FCC Class B Part18, IEC 60601-1:2005+AMD1:2012 ( Edition 3.1), IEC 60601-1-2: 2014 (Edition 4.0)
» PCAP touch allows multi-touch, multi-layer gloves and water on screen operation
» Anti-bacteria housing with IP65 front bezel and IP32 rear cover protection
» E-Window expansion slot

Hardware Spec.

System
Cooling method / System Fan Fanless
CPU 6th generation Intel® mobile ULT Core™ i7-6600U / Core™ i5-6300U /Celeron® 3855U
7th generation Intel® mobile ULT Kaby Lake on-board SoC (by project base)
Storage 1 x 2.5" SATA 6Gb/s HDD bay
1 x mSATA (E-Window)
Communication
Bluetooth V4.1 (M.2 2230 A-E key module)
Wi-Fi IEEE 802.11 a/b/g/n/ac 2T2R module
I/O Interface
Audio 2 x 3W Speaker
Expansion 1 x PCIe Mini reserved for E-Window expansion
RAM Two 260-pin 2400/2133MHz dual-channel DDR4 SO-DIMM, 4GB pre-installed (system max. 32GB)
I/O Ports and Switches 1 x RJ-11 for 1D/2D barcode reader
4 x USB 2.0 (2 on the side)
4 x USB 3.0 port
1 x HDMI™ output
2 x GbE LAN port
1 x RS-232/422/485
1 x 12~28V DC jack
Environment
Operating Temperature 0°C~40°C
Humidity 10% to 95% (non-condensing)
Storage Temperature -20°C~60°C
IP Level IP65 compliant front panel
Physical Characteristics
Mounting Wall, Stand and Arm VESA 100/75
Dimensions (LxWxH) (mm) 594.6 x 379.6 x 60.68
Construction Front Panel ABS+PC plastic with anti-bacterial material
Weight
Weight 7.5 Kg
LCD
Size 24"
Resolution 1920 (W) x 1080 (H)
Brightness (cd/m2) 250
Contrast Ratio 1000:1
LCD Color 16.7M colors (RGB 6-bit + HI_FRC)
Pixel Pitch (mm) 0.2745 (H) x 0.2745 (V)
Viewing Angle (H-V) 178°(H) / 178°(V)
Backlight MTBF 30000 (LED backlight)
Touch
Touch Screen Projected capacitive type with 10-point multi-touch
Other Features
Camera 5-megapixel CMOS front-facing camera with auto-focus and digital microphone
System Cooling Fanless
Microphone digital microphone
Function Key
Function Key 1 x LCD on/off
1 x Brightness up
1 x Brightness down
1 x Volume up
1 x Volume down
1 x Touch lock button for cleaning
Combinations:
1 x Lock/Unlock OSD
1 x Power on/off

Ordering Information

POC-W24C-ULT3-i7/PC/4G-R10 24" 250cd/m² FHD Medical panel PC ,Intel Skylake Dual Core Core™ i7-6600U Processor (2.60 GHz), 1*4GB DDR4 , 802.11a/b/g/n/ac , PCAP touchscreen, 5M camera, microphone, R10
POC-W24C-ULT3-i5/PC/4G-R10 24" 250cd/m² FHD Medical panel PC ,Intel Skylake Dual Core Core™ i5-6300U Processor (2.4 GHz), 1*4GB DDR4 , 802.11a/b/g/n/ac , PCAP touchscreen, 5M camera, microphone, R10
POC-W24C-ULT3-C/PC/4G-R10 24" 250cd/m² FHD Medical panel PC ,Intel Skylake Dual Core Celeron 3855U Processor (1.60 GHz), 1*4GB DDR4 , 802.11a/b/g/n/ac , PCAP touchscreen, 5M camera, microphone, R10

Package Contents

Package Content
  • 1 x Power Adapter

  • 1 x Power Cord
