• Overview

    ● EPIC SBC supports AMD® Embedded G-Series SoC
    ● Dual independent display support
    ● 1.35V DDR3L 1600/1333 MHz SDRAM supports up to 8 GB
    ● HD Audio supported by S/PDIF
    ● Support IPMI 2.0 with iRIS-1010 module
    ● COM, USB 3.0, SATA 6Gb/s PCIe Mini, mSATA and audio supported
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU Cooler N/A
      Display Dual independent display
      VGA (up to 2048x1536@60Hz)
      HDMI (up to 3840x2160@60Hz)
      18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
      Humidity 5% ~ 95%, non-condensing
      Operating Temperature 0°C ~ 60°C
      Expansion Slots
      Expansion Slots 1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)
      I/O Interface
      Audio Realtek ALC892 HD Audio codec
      1 x S/PDIF (1x4 pin)
      1 x Analog audio (2x5 pin)
      Digital I/O 1 x 8-bit digital I/O (2x5 pin)
      Ethernet LAN1: Intel® I210-AT PCIe controller with NCSI support
      LAN2: Intel® I211-AT PCIe controller
      I/O Interface
      I/O Interface 2 x USB 3.0
      2 x USB 2.0
      4 x Internal USB 2.0
      1 x Internal RS-422/485
      5 x Internal RS-232
      iRIS 1 x iRIS-1010 slot
      Power consumption 12V@1.02A (AMD GX-415GA 1.5GHz CPU with 1600 MHz 8GB DDR3 memory)
      Storage 2 x SATA 6G/s with 5V SATA power connector (no RAID)
      CPU AMDR Embedded G-Series ""eKabini"" SoC
      GX-415GA on-board Soc (1.5GHz, quad-core, 2MB cache, TDP=15W)
      CPU Socket On Board
      Memory Max. One 204-pin 1600/1333 MHz single-channel DDR3 & DDR3L SDRAM unbuffered SODIMM
      slot supports up to 8GB
      Watchdog Timer
      Watchdog Timer Software programmable, support 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      NANO-SE-i1-4241-R10 EPIC SBC supports AMD® 28nm quad core GX-424CC 2.4GHz (25W)on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM and Audio, iRIS-1010 and RoHS
    • Package Contents

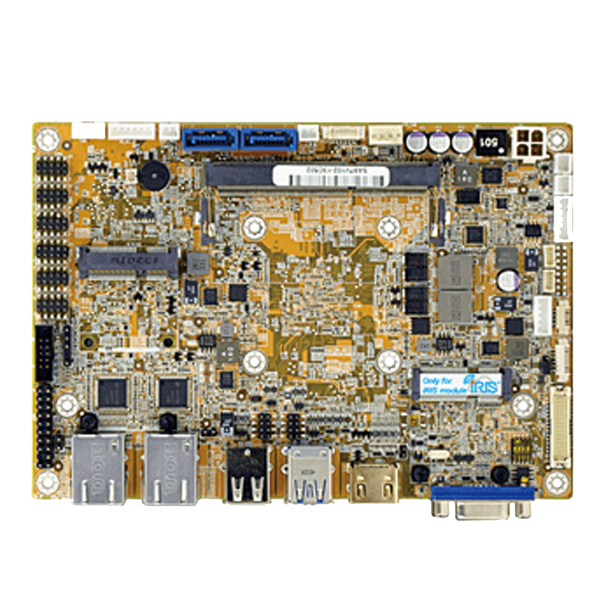

      • 1 x NANO-SE-i1 single board computer with enclosure heatsink

      • 1 x Audio cable

      • 1 x Power cable

      • 2 x RS-232 cable

      • 1 x QIG (Quick Installation Guide)

      • 2 x SATA with power cable kit
