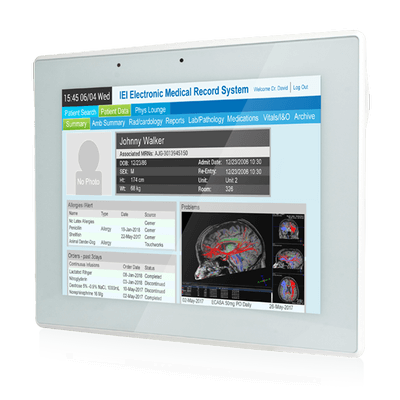

POC-17C-ULT3

17” Medical Grade Panel PC

End of Life

End of Life Notice

* Effective Date: 2022/06/16

» 17” 5:4 LED Panel (1280 x 1024)
» Intel® Skylake-ULT platform Core™ i5-6300U and Celeron® 3955U
» Projected capacitive touchscreen supports multi-touch
» IP65 compliant front bezel
» Anti-bacteria cover
» Certification: CE,FCC Class B Part18, IEC 60601-1:2005+AMD1:2012 ( Edition 3.1), IEC 60601-1-2: 2014 (Edition 4.0)
» RAID function supported (RAID 0 and RAID 1)
» Optional 3-in-1 card reader: MSR, SCR and fingerprint
» Optional Mifare RFID module
» Optional VoIP phone handset
» Optional handle module with barcode scanner and reading light

Hardware Spec.

Communication
Bluetooth V4.1 (M.2 2230 A-E key module)
Wi-Fi IEEE 802.11 a/b/g/n/ac 2T2R module
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Shock Operating Shock: 5G peak acceleration (11ms duration)
Non-Operating Shock: 15G peak acceleration (11ms duration)
Operating Temperature 0°C~40°C
Operating Vibration 1G
Storage Temperature -20°C~60°C
Function Key
Function Key 1 x LCD on/off
1 x Brightness up
1 x Brightness down
1 x Volume up
1 x Volume down
1 x Touch lock button for cleaning

Combinations:
1 x Lock/Unlock OSD
1 x Power on/off
I/O Interface
Audio 2 x 2W speaker
Expansion 1 x PCIe Mini reserved
I/O Ports and Switches 1 x RJ-11 for barcode module (1D/2D)
4 x USB 2.0 (2 for side)
4 x USB 3.0 port
1 x HDMI™ output
2 x GbE LAN port
1 x RS-232/422/485
1 x 12~28V DC jack
LCD
Backlight MTBF 30000 (LED backlight)
Brightness (cd/m2) 350
Contrast Ratio 1000:1
LCD Color 16.7M colors (RGB 6-bit)
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Resolution 1280 (W) x 1024 (H)
Size 17” (5:4)
Viewing Angle (H-V) 170°(H) / 160°(V)
Other Features
Ambient Light Sensor Ambient light sensor for panel brightness adjustment
Camera 2-megapixel CMOS front-facing
Microphone digital microphone
RFID Reader Optional: Mifare 13.56 MHz card reader
System Cooling Fanless
Physical Characteristics
Construction ABS+PC plastic with anti-bacterial material
Dimensions (LxWxH) (mm) 435 x 376 x 64.5
Mounting Wall, Stand and Arm VESA 100mm x 100mm / 75mm x 75mm
Power
Input 12V~28V DC input
Power adapter 120W medical power adapter: Input: 100V~240V AC, Output: 19V DC
System
Cooling method / System Fan Fanless
CPU Intel® Skylake-ULT platform Core™ i5-6300U and Celeron® 3955U
Memory Max. Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs
(system max. 32GB)
Storage 2 x 2.5” SATA 6Gb/s HDD bay
1 x mSATA reserved (M.2 interface)
Touch
Touch Controller ILITEK
Touch Screen Projected capacitive type with USB interface
Surface Hardness: 6H
Weight
Weight 5.8 Kg
LED Function
LED Function RFID indicator LED

Ordering Information

POC-17C-ULT3-i7/PC/4G-R10 17” 350 cd/m² 1280x1024 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i7-6600U (15W) 2.6GHz on-board processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2M camera, microphone, R10
POC-17C-ULT3-i5/PC/4G-R10 17” 350 cd/m² 1280x1024 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) 2.4GHz on-board processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2M camera, microphone, R10
POC-17C-ULT3-C/PC/4G-R10 17” 350 cd/m² 1280x1024 Panel PC with Intel® 14nm 6th Generation Mobile Celeron® 3855U (15W) 1.6GHz on-board processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2M camera, microphone, R10

Package Contents

Package Content
  • 1 x Power Adapter

  • 1 x Power Cord
