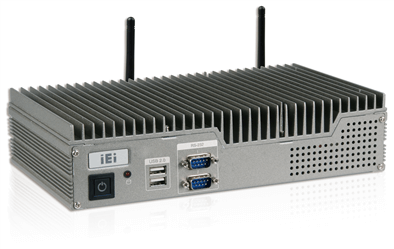

Fanless Embedded System with Intel® Solution

  • Overview

    ● Intel® Core™ i5/Celeron® CPU » Intel® Core™ i5-4400E 2.7 GHz/Celeron® 2000E 2.2 GHz
    ● Triple video outputs » 2 x HDMI + VGA
    ● Two 2.5” SATA 6Gb/s HDD/SSD drive bays
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor Intel® mobile Core™ i5-4400E with AMT 9.0 support (up to 2.7GHz, dual-core, 3MB cache, TDP=37W)
      Intel® mobile Celeron® 2000E (up to 2.2GHz, dual-core, 2MB cache, TDP=37W)
      Cooling method / System Fan Fanless
      Chipset Intel® QM87
      Memory Max. One 204-pin 4GB DDR3 SO-DIMM pre-installed (system max: 8GB)
      Drive Bays 2 x 2.5” SATA 6Gb/s HDD/SSD drive bay
      I/O Interface
      Display 2 x HDMI, 1 x VGA
      Audio 1 x Line-out, 1 x Mic-in
      I/O Interface 2 x USB 3.0
      4 x USB 2.0
      2 x RJ-45
      2 x RS-232
      Serial 2 x RS-232
      Input DC jack: 12 V DC
      3-pin terminal: 9 V~36 V DC
      Power consumption 12 V@4.6 A
      (Intel® mobile Core™ i5-4400E with 4GB 1333MHz DDR3 memory)
      Operating Temperature -20°C ~60°C with air flow (SSD)
      Humidity 10% ~ 95%, non-condensing
      Dimensions 265 x 134 x 56.7
      Weight 2.4 kg/4.2 kg
      Color Silver
      Expansion Slots
      Expansion Slots 1 x Full-size PCIe Mini (supports mSATA, SATA 6Gb/s signal only)
      1 x Half-size PCIe Mini (only for iRIS-1010)
      iRIS 1 x iRIS-1010 (optional)
    • Ordering Info.

      Item No. Description
      ECN-380-QM87i-WD-QGW-R10 Fanless embedded system with Intel® Core™ i5-4400E 2.7 GHz, TDP 37W, 2 x HDMI, 1 x VGA, 2 x 2.5'' SATA HDD bay, 8GB memory pre-installed, iRIS-1010, with QTS-gateway, 9 V~36V DC, RoHS
