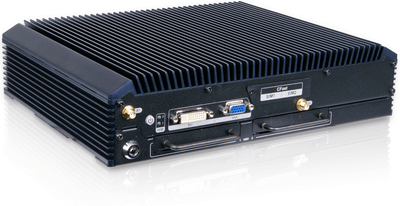

IRS-100-ULT3

Rolling stock computer for traffic safety system, passenger information and video surveillance

  • Overview

    ● Intel® Skylake ULT processor
    ● Dual M12 LAN port
    ● VGA / DVI dual display
    ● Dual SIM card design
    ● 24V / 110V DC input
    ● 2 x 2.5"" hot-swappable SATA SSD drive bay
    ● EN 50155
  • Features

    Rolling Stock Computer : IRS Series

    IEI’s Railway System (IRS) is focused on the rolling stock market with a variety of advanced technologies designed. The IRS-100 series is compliant with EN 50155 standard. The IRS-100 provides multiple storage bays for data saving, lockable connectors, GPS function and Wi-Fi for wireless communication. Users can control passenger information system (PIS) and network video recorder (NVR) through the IRS-100. The popular IP cameras for surveillance application can also be implemented to provide real time video monitoring to ensure passengers’safety.

    Railway-computer-system

    Dual SIM Slot

    The IRS-100 offers dual SIM slot with the ability to automatically switch between two different networks in order to maintain seamless connectivity in remote areas. The system supports GPRS/UMTS/HSDPA/LTE technologies for transmission.

    Dual-sim-card-support
    railway-computer-front

    Lockable-M12-connectors

    Lockable M12 Connectors

    To against vibration and shock, the M12 connector is used for dual LAN communication which offers a reliable performance for high-quality data acquisition or transmission. The M12 connector can ensure that all cables can be tightly secured and improve anti-vibration capability.

    railway-computer-rear-view

    Multiple Isolated Port Protection

    The IRS-100 provides 1.5kV isolation on the RS-232/422/485, DIO and power in order to protect from any stray electrical signals from other devices and to ensure stable operation in harsh environments.

    RS-232-422-485-connector

    Operating Temperature and EN 50155 Compliance

    EN50155 is the standard for electronic equipment used on rolling stock. IEI’s railway system (IRS-100) complies with EN50155 TX column 2 standard and passed tests for vibration, shock, and wide temperature. IRS-100 can run in an extremely hot or cold environment -40°C ~ 70°C.

    rolling-stock-EN50155-compliance-railway-computer

    Wide Range of DC/DC Converters

    Railway rolling stock is required to meet the requirement of EN50155 for electronic equipment.IRS-100 has wide range of input voltages of 24VDC~110VDC (±40%), therefore, uses are able to install variety devices in different railway rolling stock applications.

    Rolling-stock-Wide-range-of-DC/DC-converters

    Compliant with Electromagnetic Interference Requirements

    Railway electronic systems are subjected to different level of electromagnetic interference requirements.

    Compliant-with-electromagnetic-interference-requirements

    Compliant with Mechanical Requirements

    Railway electronic systems are subjected to high-level mechanical environmental constraints depending on their implementation.

    IRS-rolling-stock-computer-Compliant-with-Mechanical-requirement

    Fully Integrated I/O

    Railway system computer fully integrated IO
    Railway system computer fully integrated IO-2

    Dimensions

    IEI IRS railway computer system dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor CPU:Intel® Core™ i5-6300U processor (dual-core, 2.4 GHz, 15W TDP)
      Chipset:SoC
      System Memory:2 x 260-pin DDR4L SO-DIMM 4GB pre-installed (system max. 32 GB)
      I/O Interface
      I/O Ports 2 x USB 3.0
      1 x USB 2.0 (M12 connector)
      2 x M12 connector PCIe GbE by Intel® I1211
      2 x DB-9 RS-232/422/485 (with 1.5 kV isolation)
      1 x Terminal block for 8-bit digital I/O (4-bit input/4-bit output, 1.5 kV isolation)
      1 x VGA
      1 x DVI-D
      1 x Line-out, 1 x Mic-in
      2 x SIM card slot
      Expansion Slots
      Expansion Slots 2 x Full-size PCIe Mini (for WWAN / WLAN module)
      System
      Cooling method / System Fan Fanless
      Drive Bays 2 x 2.5' SATA 6Gb/s SSD drive bay
      Color
      Color Blue C
      Dimensions
      Dimensions 290 x 69 x 225
      Weight
      Weight 3.9 kg / 5.1 kg
      Environment
      Operating Temperature -40°C ~ 70°C with air flow (with industrial SSD/CF), compliant with EN 50155
      Humidity 10% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      IRS-100-ULT3-i5/4G-R10 Fanless railway system with Intel® Core™ i5-6300U processor, (15W), 4GB DDR4L pre-installed memory, two 2.5" SATA SSD bays, VGA, DVI, two M12 GbE LAN
