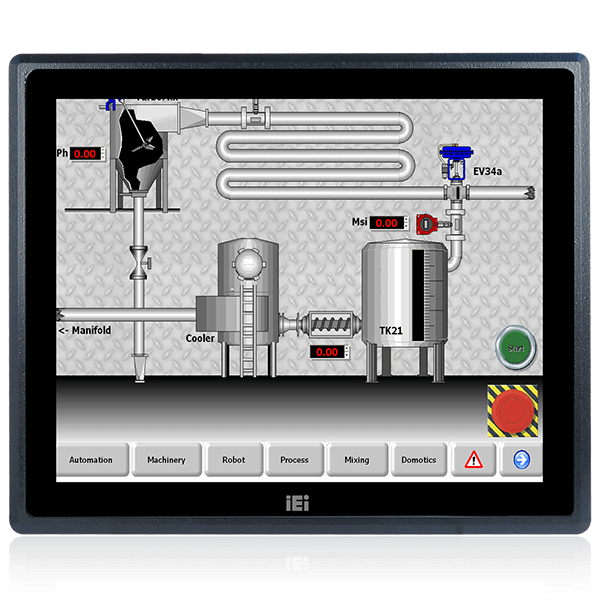

Cloud Based IPC built-in QTS Gateway OS for IIOT

  • Overview

    ●Built-in QTS Gateway operating system that can be visualized immediately
    ●Supports remote connection (myQNAPcloud) and hybrid backup (Hybrid Backup Sync)
    ●QRM+ easily monitors IPMI equipment, servers, PCs and production line equipment
    ●Q’center centralizes management of multiple QNAP NAS and the IPC equipped with QTS Gateway
    ●Surveillance Station for remote video surveillance, 24/7 security
    ●Seven levels of data security protection to protect your valued data
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor CPU:
      Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
      Cooling method / System Fan Fanless
      Chipset SoC
      Memory Max. 1 x 4 GB 204-pin DDR3L SO-DIMM pre-installed
      Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
      Indicators Power/HDD/Com port
      Buttons 1 x Power switch
      I/O Interface
      Display LCD Size: 17”
      Brightness(cd/m2): 350
      Max Resolution: 1280 x 1024
      Contrast Ratio: 800:1
      LCD Color: 16.7M
      Pixel Pitch(mm): 0.26 x 0.26
      Viewing Angle(H-V): 170° / 160°
      Backlight MTBF(hrs): 50000
      I/O Interface 2 x RJ-45 LAN port
      2 x USB 3.0
      2 x USB 2.0
      1 x HDMI
      2 x RS-232
      1 x RS-232/422/485
      1 x VGA
      1 x 9V ~ 36V DC jack (4-pin)
      1 x 9V ~ 36V DC terminal block
      1 x Line-out
      1 x Power switch
      Wireless: 802.11 b/g/n (optional)
      Other On-board Devices and Interfaces Touchscreen & Controller:
      5-wire resistive type single touch window (Penmount 9000), 3H
      2-point projected capacitive touch window (EETI EXC7200), 6H
      Serial 2 x RS-232
      1 x RS-232/422/485
      Input 1 x 9V ~ 36V DC jack (4-pin)
      1 x 9V ~ 36V DC terminal block
      Power consumption 42W
      Power Jack 1 x 9 V~36 V DC jack (4-pin)
      Power Supply P/N: 63040-010060-110-RS
      60W Power Adapter
      Input: 90 - 264V AC, 50/60Hz
      Output: 12V DC
      Operating Temperature -10°C ~ 50°C with air flow
      Safety & EMC CE/FCC, MIL-STD-810F 514.5C-2 (with SSD)
      Humidity 10% to 95% (non-condensing)
      Physical Characteristics
      Construction Extruded aluminum alloys
      IP 65 compliant front panel
      Panel mount, rack mount, VESA 100x100
      Dimensions 341.4 x 408.4 x 51.8
      Weight 5kg
      Color Black
      Expansion Slots
      Expansion Slots 1 x Full-size/half-size PCIe Mini slot (PCIe/USB signal)
      iRIS 1 x iRIS-2400 (Optional)
    • Ordering Info.

      Item No. Description
      PPC-F17B-BT-QGW-J1/4G/PC-R10 17 inch 350 cd/m2 SXGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*2, support iRIS-2400, black color, with QTS-Gateway, 9-36V DC input, projected capacitive touch window, R10
    • Package Contents

      • 1 x Screw kt

      • 1 x Power cord
