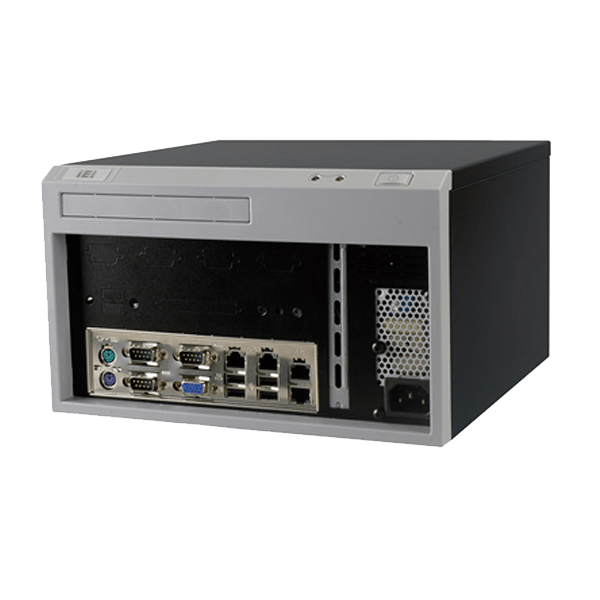

EBC-3100

Mini-ITX Chassis for High Power Consumption Applications

  • Overview

    ● Designed for high performance applications, bundled with 270W high efficiency ATX power supply
    ● Front accessible I/O design
    ● Supports one expansion slot
    ● One 3.5” hard drive, one slim type optical drive capacity
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor Refer to KINO Series
      SBC Size: Mini-ITX (170mm x 170mm)
      Expansion Slots
      Expansion Slots 1 x Full-height expansion slot
      System
      Cooling method / System Fan 80 x 80 x 25
      Drive Bays 1 x 3.5"" SATA HDD space
      1 x 5.25"" slim type
      Physical Characteristics
      Construction Heavy duty metal with plastic front panel
      Desktop, wall mount
      Color
      Color Black
      Dimensions
      Dimensions 260 x 250 x 156
      Weight
      Weight 2.5 kg/3.9 kg
      Environment
      Operating Temperature 0°C ~ 50°C
    • Ordering Info.

      Item No. Description
      EBC-3100-R11/ACE-A618A Mini-ITX embedded chassis,one 3.5" hard drive bay,with ACE-A618A-RS 180W ATX power supply,black,ROHS
      EBC-3100-R11/ACE-A627A Mini-ITX embedded chassis,one 3.5" hard drive bay,with ACE-A627A-RS 270W ATX power supply,black,ROHS
    • Package Contents

      • 1 x System Fan

      • 1 x Screw set

      • 1 x QIG

      • 1 x Power cord

      • 1 x Wall mount kit

      • 1 x SATA slim ODD cable
