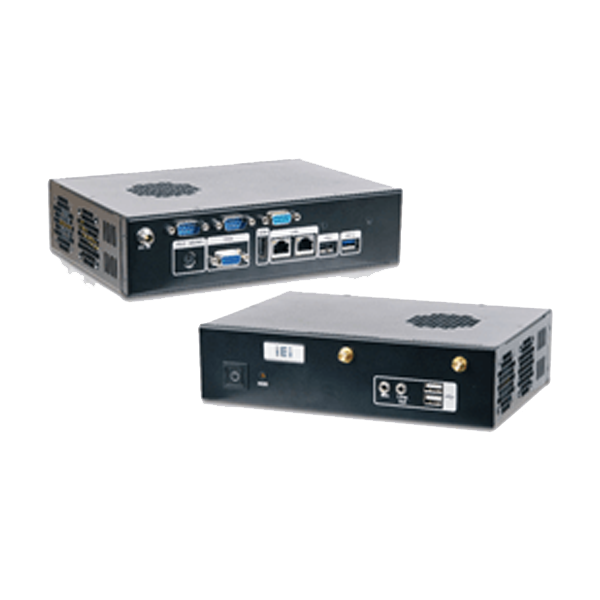

  • Overview

    ● Designed for EPIC SBC with single voltage input
    ● One 2.5"" hard drive capacity
    ● Support one PCIe Mini expansion slot
    ● Complete I/O interface, including dual GbE, dual display port
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor Refer to SBC
      SBC Size: EPIC SBC (165 mm x 115 mm)
      I/O Interface
      I/O Ports BT:
      1 x PS/2, 1 x USB3.0, 3 x USB2.0, 2 x LAN, 2 x RS-232, 1 x RS-232/422/485, 1 x HDMI, 1 x VGA, 1 x Audio Line-out, 1 x Mic-in, 1 x 802.11b/g/n (optional)
      QM87:
      2 x USB3.0, 4 x USB2.0, 2 x LAN, 1 x RS-232, 1 x RS-232/422/485, 1 x Digital I/O, 2 x HDMI, 1 x VGA, 1 x Audio Line-out, 1 x Mic-in, 1 x 802.11b/g/n (optional)
      Expansion Slots
      Expansion Slots 1 x Full-size PCIe Mini card slot
      System
      Cooling method / System Fan 40 x 40 x 10 (optional)
      Drive Bays 1 x 2.5' SATA 6Gb/s HDD/SSD drive bay
      Physical Characteristics
      Construction Aluminum alloy with heavy duty metal
      Wall mount, VESA 75
      Color
      Color Black
      Dimensions
      Dimensions 215 x 150 x 55
      Weight
      Weight 1.1 kg/2 kg
      Environment
      Operating Temperature -20°C ~60°C
    • Ordering Info.

      Item No. Description
      EBC-2200-QM87-R10Embedded chassis for NANO-QM87 Series MB, with 1 x 2.5" SATA hard drive bay, IO bracket, 1 x LED Cable, 1 x Power Switch Cable, 1 x USB Cable, RoHS, R10
      EBC-2200-BT-R10Embedded chassis for NANO-BT Series MB, with 1 x 2.5" SATA hard drive bay, IO bracket, 1 x LED Cable, 1 x Power Switch Cable, 1 x USB Cable, RoHS, R10
    • Package Contents

      • 1 x QIG

      • 2 x Wall mount bracket

      • 1 x Screw set
