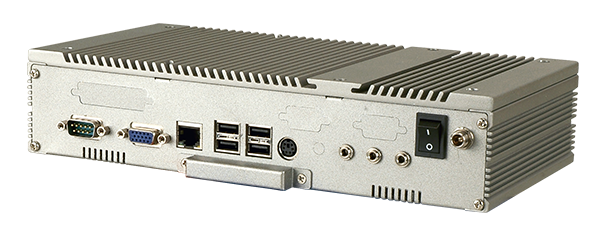

EBC-2100

Embedded C EBC-2100 hassis for EPIC NANO Series

  • Overview

    ● Fanless system with AMD LX-800
    ● Complete I/O interfaces, including LAN, COM, four USB
    ● Single 12V DC power input, AT mode only
    ● DDR support up to 1GB
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor Refer to SBC
      SBC Size (mm): EPIC (165 x 115)
      I/O Interface
      I/O Ports 1 x PS/2
      4 x USB2.0
      1+2 RS-232
      1 X LPT (optional)
      1 x Realtek 8100C
      3 x Audio jack (optional)
      Expansion Slots
      Expansion Slots 1 x PCI-104
      System
      Cooling method / System Fan 40 x 40 x 10 (optional)
      Drive Bays 1 x 2.5"" SATA HDD drive bay
      1 x CF Card/CFast
      Physical Characteristics
      Construction Aluminum alloy with heavy duty metal
      Color
      Color Cool gray
      Dimensions
      Dimensions 262 x 134 x 56
      Weight
      Weight 1 kg/3 kg
      Environment
      Operating Temperature 0°C ~ 50°C
    • Ordering Info.

      Item No. Description
      EBC-2100-R41Embedded chassis for NANO-8522/LX,compatible with 2.5" SATA hard drive,60W power adapter with ERP and PSE certificates,sliver,RoHS
    • Package Contents

      • 1 x 12V 60W power adapter

      • 1 x Power cord

      • 1 x Screw set

      • 1 x Wall mount kit

      • 1 x QIG
