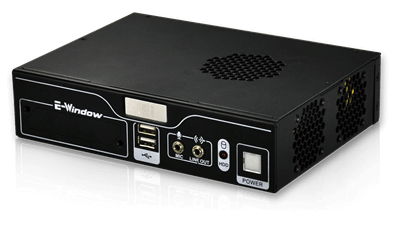

• Overview

    ● Designed for WAFER-BT-E38001W2 SBC with single voltage input
    ● One 2.5” hard drive capacity and two PCIe Mini expansion slots
    ● On-board memory and on-board SSD for choice
    ● Flexible E-Window tool kit support
    ● -40°C ~ 75°C wide temperature support
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor Intel® Atom™ E3800 series on-board SoC
      I/O Interface
      I/O Ports 1 x USB 3.0
      3 x USB 2.0
      2 x RJ-45 (Intel® I210-IT PCIe controller)
      2 x RS-232 (RS-232 pin header is optional)
      1 x RS-422/485 (pin header, optional)
      1 x VGA (up to 2560x1600@60Hz)
      1 x Audio Line-out
      1 x Audio Mic-in
      802.1b/g/n 2T2R (optional)
      Expansion Slots
      Expansion Slots 2 x Full-size PCIe Mini slot
      1 x E-Window
      System
      Cooling method / System Fan Refer to MB
      Drive Bays 1 x 2.5’’ SATA 6Gb/s HDD/SSD drive bay
      Indicator&Buttons
      Indicators Power, HDD
      Physical Characteristics
      Construction Aluminum alloy with heavy duty metal
      Desktop, wall mount
      Color
      Color Black
      Dimensions
      Dimensions 190 x 140 x 46
      Weight
      Weight 1.2 kg/2.2 kg
      Environment
      Operating Temperature E3845 (10W):
      -40°C ~ 50°C without fan module/
      -40°C ~ 75°C with fan module
      E3825 (6W):
      -40°C ~ 65°C without fan module
    • Ordering Info.

      Item No. Description
      EBC-1100-BTW2-R10 Embedded chassis for WAFER-BT-E38001W2 Series MB, with one 2.5" SATA hard drive bay, IO bracket, one LED Cable, one Power Switch Cable, one USB Cable, one Audio Cable, RoHS, R10
    • Package Contents

      • 1 x QIG

      • 1 x Wall mount bracket kit

      • 1 x Screw set
