AFL3-W19C-ULT3

Intel® Core™ i5 and Celeron® ULT Processor

  • Overview

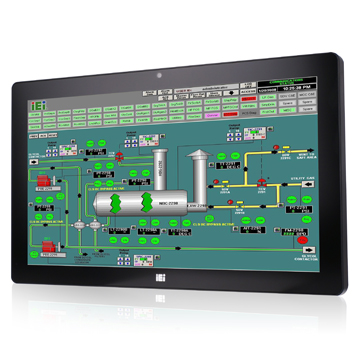

    ● W19” light industrial interactive panel PC
    ● 9 V ~ 30 V wide range DC power input
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● One mSATA slot
    ● IP64 compliant front panel
    ● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      Bluetooth Bluetooth v4.0 (M.2 slot)
      Wireless IEEE 802.11a/b/g/n/ac
      Environment
      Humidity 10% to 95% (non-condensing)
      IP Level IP 64 compliant front panel
      Operating Temperature -20°C~50°C
      Safety & EMC CE / FCC
      Storage Temperature -20°C~60°C
      I/O Interface
      Audio AMP 3W + 3W (internal speaker)
      Audio Codec ALC892
      Ethernet 2 x Intel® I211-AT PCIe GbE controller
      I/O Ports and Switches 1 x RS-232 by DB-9 (RI/5V/12V)
      1 x RS-232/422/485 by DB-9 (RI/5V/12V)
      2 x GbE LAN
      4 x USB 3.0
      1 x HDMI output
      1 x Power switch
      1 x Reset button
      1 x AT/ATX switch
      1 x 9-30V lockable power jack
      RAM Two 260-pin DDR4 SO-DIMMs (system max.32GB)
      LCD
      Backlight MTBF 30,000 (LED backlight panel)
      Brightness (cd/m2) 250
      Contrast Ratio 1000:1
      LCD Color 262K
      Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
      Resolution 1366 x 768 (16:9)
      Size 18.5""
      Viewing Angle (H-V) 170º/160º
      Other Features
      Camera 2-megapixel with low light function
      Microphone digital microphone
      OSD Function Software OSD
      System Cooling Fanless
      Physical Characteristics
      Color Black C
      Construction Front Panel PC + ABS Plastic
      Cutout Dimensions 443 x 261 (W x H) (mm)
      Dimensions (LxWxH) (mm) 470 x 290 x 70
      Mounting Panel, Wall, Rack, Stand and Arm
      VESA 75mm x 75mm / 100mm x 100mm
      Net Weight 7.3Kg
      Power
      Power consumption 12V@7.1A
      Power Requirement 9 V ~ 30 VDC
      System
      Cooling method / System Fan Fanless
      CPU Intel® Core™ i5 and Celeron® ULT Processor
      Storage 1 x 2.5” SATA 3Gb/s HDD bay
      1 x M.2 M key PCIe storage (2280 or 22110)
      1 x mSATA slot
      Touch
      Touch Controller EETI EXC3180
      Touch Screen Projected capacitive type with USB interface
      Weight
      Weight 7.3/10Kg

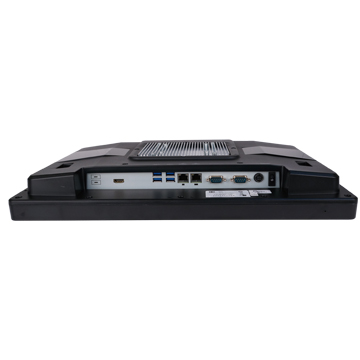

      I/O Interface
      I/O Interface 1 x HDMI(output)
      4 x USB 3.0
      1 x Power In(9-30V lockable power jack)
      1 x RS-232(DB-9 (RI/5V/12V))
      2 x LAN(Gbe)
      1 x Reset Button
      1 x Power Switch
      1 x AT/ATX switch
      1 x RS-422/485(DB-9 (RI/5V/12V))
    • Ordering Info.

      Item No. Description
      AFL3-W19C-ULT3-i5/PC/4G-R10 Wide 18.5” 250 cd/m² 1366x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10
      AFL3-W19C-ULT3-C/PC/4G-R10 Wide 18.5” 250 cd/m² 1366x768 Panel PC with withIntel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10
    • Package Contents

      • 4 x Round head machine screw

      • 4 x Pan head machine screw

      • 1 x Power cord

      • 1 x Power adapter 63040-010096-100-RS
