HSC-13M3-O

USB 3.0 Monochrome Camera & Opto-isolated I/O, 1/2” On-semi CMOS, Global Shutter, 1280x1024 Pixels, without Lens, RoH

  • Overview

    ● Compact 1/2” On-Semi CMOS sensor with global shutter
    ● Large pixel: 4.8 µm / Frame rate: 140fps / Resolution: 1280x1024
    ● High bandwidth, provides power and data over a single cable.
    ● Lower cost implementation, Plug-and-play and easier to set up.
    ● Adopted as “USB3 Vision” standard and supported vision software such as Halcon, Merlic, MIL, NI LabVIEW.
  • Features

    HSC-13M3-O and HSC-13M4-E High Speed USB3 Industrial Cameras

    High compliance to 3rd party vision library

    The architecture of the IEI Camera is based on USB3 Vision and GenICam standard, which offers you compatible interface with name-brand machine vision software such as MVtec Halcon, MERLIC, NI-LabVIEW, MIL …etc.

    High compliance to 3rd party vision library

    Application

    industrial-camera-application

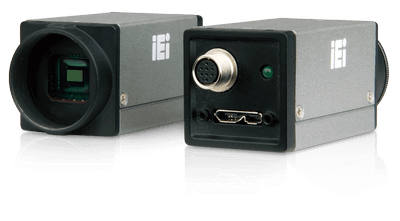

    External Overview

    External Overview
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Appearance
      Dimension 29 mm x 29 mm x 57 mm
      Net Weight 85g
      Capture Interface
      Interface Type 1 x USB3.0
      Certifications
      Safety & EMC CE/EMC, FCC
      LED Safety CE/LVD
      Environment
      Operating Temperature 0° ~ 50°C
      Storage Humidity 30% ~ 95%
      Storage Temperature -30° ~ 60°C
      Operating Humidity 20% ~ 80%
      I/O Interface
      I/O Interface 1 x Trigger connection(IO connecting cable with an 8-pin male connector)
      Others
      Power Requirements 5V via USB 3.0 or 6-18V via Opto-isolated input
      Parameters
      Opto-isolated I/O Ports 1 input, 1 output
      ADC 8-bit/10-bit
      Pixel Size 4.8µm
      Readout Method Global shutter
      Resolution 1280 x 1024
      Sensor Name On-Semi PYTHON 1300
      Sensor Type CMOS
      Machine Vision Standard USB3 Vision v1.0
      Non-isolated I/O Ports 1 RS-232
      Sensor Size (inch) 1/2"
      Auxiliary Output 5V, 100 mA max
      Chroma Mono
      Compliance CE, FCC
      Frame Rate 150FPS (Max)
      Interface USB 3.0
      Lens Mount CS-mount
      Megapixels 1.3 MP
      Software Support
      SDK 1 x Windows
      OS Support 1 x Microsoft Windows 10 32-bit
      1 x Microsoft Windows 10 64-bit
      1 x Microsoft Windows 7 32-bit
      1 x Microsoft Windows 7 64-bit
      1 x Microsoft Windows 8.1 32-bit
      1 x Microsoft Windows 8.1 64-bit
      Sensor Specifications
      Acquisition Continuous, Single Frame, Multi Frame
    • Ordering Info.

      Item No. Description
      HSC-13M3-O-R10 USB 3.0 Monochrome Camera & Opto-isolated I/O, 1/2” On-semi CMOS, Global Shutter, 1280x1024 pixel, without Lens, RoHS
    • Package Contents

      • 1 x HSC-13M3-O

      • 1 x Mounting bracket

      • 1 x CS to C mount adapter

      • 1 x QIG
