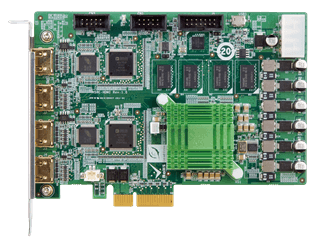

HSRC-302E

PCI Express Uncompressed Video/Audio Capture Card with two Channel HDMI™ Inputs and Two Channel HDMI™ Bypass Outputs, 4K@30p, 1920x1080@60p

End of Life

End of Life Notice

* Effective Date: 2017/01/24

» 2-channel HDMI™ input and 2-channel HDMI™ bypass output
» Either one HDMI™ input supports 4K video signal
» Supports for 4:2:2 color spaces to provide the highest quality for your images
» HDMI™ bypass output supports video no delay pass through up to 4K@30, so you can watch original video while video processing
» Designed for professional video, machine vision, broadcast & post production industries
» For multi-channel audio mastering, 24-bit 48kHz audio provides the power you need to integrate into any audio environment
» Windows/Linux OS supported

Hardware Spec.

Appearance Dimension
Audio Processing Audio Sampling Frequencies
Capture Interface Audio Input
1 x Audio Input Channel
Interface Type 1 x USB3.0
No Delay Passthrough 1 x Video Output-HDMI™
1 x Video Output Channel
1 x Audio Output Channel
1 x Audio Output-HDMI™(stereo)
Video Input 1 x Video Input-HDMI™
1 x Video Input Channel
Environment Operating Temperature
Others Power Consumption
Software Support SDK
1 x Windows
OS Support 1 x Microsoft Windows 10 32-bit
1 x Microsoft Windows 7 32-bit
1 x Microsoft Windows 7 64-bit
1 x Microsoft Windows 8.1 32-bit
1 x Microsoft Windows 8.1 64-bit
1 x Microsoft Windows 10 64-bit
1 x Linux Ubuntu(14.04.2 (64-bit ) (Kernel version: 3.16.0-30-generic))
System Requirement CPU
Memory 4GB or more
Video Processing Color Space
Recording Formats 1920 x 1080 24p/25p/30p/50p/59.54p/60p
1920 x 1080 60i/59.94i/50i
1680 x 1050 60p
1440 x 900 60p
1360 x 768 60p
1280 x 1024 60p
1280 x 800 60p
1280 x 768 60p
1280 x 720 60p/59.94p/50p
1024 x 768 60p
800 x 600 60p
720 x 576 50p
720 x 480 60p
640 x 480 60p
Video Compression 1 x Software Compression
Video Input Resolution 1920 x 1080 24p/25p/30p/50p/59.54p/60p
1920 x 1080 60i/59.94i/50i
1280 x 1024 60p
1280 x 720 60p/59.94p/50p
1024 x 768 60p
800 x 600 60p
720 x 576 50p
720 x 480 60p
640 x 480 60p

Ordering Information

HSRC-302E-R10 PCI Express uncompressed video/audio capture card with two HDMI™ input channels and two HDMI™ output channels, 4k@30p, 1920x1080@60p
