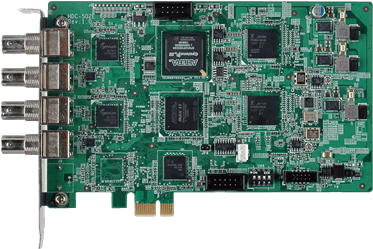

PCIe Video/Audio Capture Card with Two Channel 3G-SDI Inputs, Two Channel 3G-SDI Loop Output, 1920x1080@60p and H.264 Hardware Encoder

  • Overview

    ● 2-channel 3G-SDI input with H.264 hardware compression and 2-channel 3G-SDI output
    ● High quality video encoding up to 1080p60
    ● Low Power Consumption
    ● SDK available for customer to create customized applications
    ● Applications: professional studio, broadcast and transportation video applications
    ● Windows/Linux OS supported
  • Features

    Resource Download
    QIG HDC-502E_QIG_V2.00_20120926
    User Manual HDC-502E_UMN_v2.00_20121127
    HDC-502E_SDK_Linux_UMN_v1.17
    HDC-502E_SDK_Windows_UMN_v2.00

    Driver/AP/SDK

    Type Operation system File Release date
    Driver for
    HDC-301/HDC-301E/HDC-302E/HDC-304E/HDC-401/HDC-401E/HDC-502E
    Windows 7 32-bit HDCaptureDriverInstaller_x86_20140106 2014/01/06
    SDK for
    HDC-302E/HDC-304E/HDC-502E
    HDCaptureSDK_x86_V2.01A_20160104R 2016/01/04
    Application for
    HDC-302E/HDC-304E/HDC-502E
    HDCapture_x86_V2.01A_20160104R 2016/01/04
    Driver for
    HDC-302E/HDC-304E/HDC-502E
    Windows 7 64-bit HDCaptureDriverInstaller_x64_20140414 2014/04/14
    SDK for
    HDC-302E/HDC-304E/HDC-502E
    HDCapture64 SDK V2.02 20130808R 2013/08/08
    Application for
    HDC-302E/HDC-304E/HDC-502E
    HDCapture64 V2.02.0.1-1 20140508R 2014/05/08
    Driver/ SDK /AP for
    HDC-502E
    Fedora 17 32-bit
    kernel version 3.3.4-5
    HDCapture_5xx-hdc_r1_6_8_1_20140822-10445-3.3.4-5.fc17.i686.PAE.tar 2014/08/22
    Fedora 17 64-bit
    kernel version 3.3.4-5
    HDCapture_5xx-hdc_r1_6_8_1_20140822-10445-3.3.4-5.fc17.x86_64.tar 2014/08/22
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Appearance
      Dimension188 mm x 125 mm
      Audio Processing
      Audio CompressionMPEG-1 Audio Layer 2
      Recording Data rate256k
      Capture Interface
      Audio Input2 x Audio Input Channel
      2 x Audio Input-3G-SDI
      Interface Type1 x PCIe x 1
      No Delay Passthrough2 x Audio Output Channel
      2 x Audio Output-3G-SDI
      2 x Video Output-3G-SDI
      2 x Video Output Channel
      Video Input2 x Video Input-3G-SDI
      2 x Video Input Channel
      Environment
      Operating Temperature0°C ~ 60°C (32°F ~ 140°F), non-condensing
      Functionality
      Multiple Card Support4 cards, 8 channels
      Others
      Power Consumption14.2W (12V@0.76A, 3.3V@1.52A)
      Software Support
      SDK1 x Linux
      1 x Windows
      OS Support1 x Linux Ubuntu(16.04 (64-bit) (Kernel version: 4.4.0-21-generic))
      1 x Microsoft Windows 7 32-bit
      1 x Microsoft Windows 7 64-bit
      System Requirement
      CPUx86 PC compatible computer, Intel® Pentium® 4 2.0GHz or above for video record
      Memory1GB or more
      Graphic CardRecommends using a DXVA or CUDA capable graphics card
      for real-time video playback
      Video Processing
      Recording Data rate2-30 Mbps
      Recording Formats1920 x 1080 x 60p
      1280 x 720 x 60p
      Video Compression1 x Hardware Encoder(H.264/AVC High Profile Level 4.2)
      Video Input Resolution1920 x 1080 x 60p / 50p / 30p / 25p / 24p
      1920 x 1080 x 60i / 50i
      1280 x 720 x 60p / 50p / 30p / 25p / 24p
      720 x 480 x 60i
      720 x 576 x 50i
    • Ordering Info.

      Item No. Description
      HDC-502E-R10PCI Express video/audio capture card with 2 SDI input channels, 2 loop-out channel, resolution support up to 1920x1080@60p, and Hardware H.264 codec
    • Package Contents

      • 1 x HDC-502E capture card

      • 1 x Utility CD

      • 1 x QIG
