HDB-301L

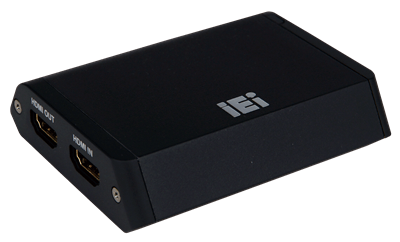

USB 2.0 Video/Audio Capture Box with One Channel HDMI Input and One Channel HDMI Bypass Output, 1920x1080@30p, and H.264 Hardware Encoder

  • Overview

    ● 1-channel HDMI input with H.264 hardware compression and 1-channel HDMI bypass output
    ● High quality video recording up to 1080p30
    ● HDMI bypass output supports video no delay pass through up to 1080p60, so you can watch video while recording
    ● Provides DirectShow filter
    ● Windows/Linux OS supported
  • Features


    Resource Download
    QIG HDB-301L QIG_A6_EN_TW_V4
    User Manual (繁體中文版) HDB-301L_UMN_TC_v1.01
    User Manual (English Version) HDB-301L_UMN_v1.01

    Driver & AP

    Product Description OS Download Date
    HDC-301MS/HDC-301EL/HDB-301L Driver & AP Windows 7, 8.1, 10 32-bit/64-bit IEI_HDCapture_V102AD_20170502 2017/5/2

    SDK (develop purpose)

    Product Description OS Download Date
    HDC-301MS/HDC-301EL/HDB-301L SDK / Demo Software / sample code Windows 7 /10 32-bit/64-bit HD_Capture_AP_Ver_V1.03_20150415 2015/04/15
    Driver/ SDK /AP Ubuntu 64bit(16.04 ) Kernel version: 4.4.0-21-generic IEI_hdcxxx_0_5_0_3_bin_ubuntu-16.04-64_D20170124_V8995_K4.4.0-21-generic.tar.gz 2017/01/24
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Appearance
      Dimension89 mm x 74.83 mm x 21.6 mm
      Net Weight156g
      Audio Processing
      Audio CompressionMPEG4-AAC
      Audio Sampling Frequencies44.1k, 48k Hz
      Recording Data rate128kbps
      Capture Interface
      Audio Input1 x Audio Input Channel
      1 x Audio Input-HDMI(stereo)
      Interface Type1 x USB2.0
      No Delay Passthrough1 x Audio Output Channel
      1 x Video Output Channel(1080p60)
      1 x Audio Output-HDMI(stereo)
      1 x Video Output-HDMI
      Video Input1 x Video Input Channel
      1 x Video Input-HDMI
      Environment
      Operating Temperature0°C ~ 60°C (32° ~ 140°F), non-condensing
      Functionality
      Multiple Card Support4 boxes, 4 channels
      ScalingVideo scaling down compression
      Others
      Power Consumption4.5W
      Software Support
      SDK1 x Linux
      1 x Windows
      OS Support1 x Linux Ubuntu(16.04 (64-bit) (Kernel version: 4.4.0-21-generic))
      1 x Microsoft Windows 7 32-bit
      1 x Microsoft Windows 7 64-bit
      System Requirement
      CPUIntel® Core™2 Duo 2.4GHz or above
      Memory2GB or more
      Video Processing
      Recording Data rate1~30Mbps
      Recording Formats1920 x 1080 24p/25p/30p 1280 x 1024 30p
      1280 x 800 60p 1280 x 768 60p
      1280 x 720 50p/60p 1024 x 768 60p
      800 x 600 60p 720 x 576 50p
      720 x 480 60p 640 x 480 60p
      Video Compression1 x Hardware Encoder(H.264/AVC High Profile Level 4.1)
      Video Input Resolution1920 x 1080 24p/25p/30p/50p/60p
      1920 x 1080 60i/59.94i/50i 1280 x 1024 30p
      1280 x 800 60p 1280 x 768 60p
      1280 x 720 50p/60p 1024 x 768 60p
      800 x 600 60p 720 x 576 50p
      720 x 480 60p 640 x 480 60p
    • Ordering Info.

      Item No. Description
      HDB-301L-R10USB2.0 Capture Box with one HDMI input,1920x1080@30p, and H.264 codec transcoding
    • Package Contents

      • 1 x HDB-301L

      • 1 x USB cable (600mm)

      • 1 x QIG

      • 1 x Utility CD
