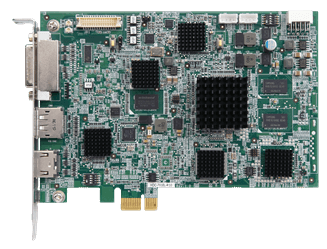

HDC-701EL

PCI Express video/audio capture card with One Channel HDMI/DP/DVI-I/YPbPr/3G-SDI Input and One Channel HDMI Output, 1920x1080@30p, and H.264 Hardware Encoder

  • Overview

    ● 1-channel HDMI/DP/DVI-I/YPbPr/3G-SDI input with H.264 hardware compression and 1-channel HDMI output
    ● High quality video recording up to 1080p30
    ● HDMI output supports video preview up to 1080p60, so you can watch video while recording or editing
    ● Provides DirectShow filter
    ● Equipped with video scaler for PIP, OSD, cropping (optional)
    ● Windows/Linux OS supported
  • Features

    Resource Download
    QIG HDC-701EL Quick Installation Guide V1.00
    User Manual HDC-701EL_User Manual_v1.01
    HDC-701EL_SDK User Manual for Windows_v1.00
    HDC-701EL_SDK User Manual for Linux_v1.00
    Driver/AP/SDK
    Type Operation System File Release Date
    Driver/SDK/Demo Software for
    HDC-701EL
    Windows 7 / Windows8.1 32-bit/64-bit IEI_HDC-701EL_V1.0.4.5

    *For Windows 8.1 64-bit users, you need to disable driver signature enforcement before each Windows startup.*

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Appearance
      Dimension155 mm x 111 mm
      Audio Processing
      Audio CompressionMPEG4-AAC
      Audio Sampling Frequencies44.1k, 48k Hz
      Recording Data rate128kbps
      Capture Interface
      Audio Input1 x Audio Input Channel
      1 x Audio Input-HDMI(stereo)
      Audio Output1 x Audio Output Channel
      1 x Audio Output-HDMI(stereo)
      Interface Type1 x PCIe x 1
      Video Input1 x Video Input Channel
      1 x Video Input-3G-SDI
      1 x Video Input-DP
      1 x Video Input-DVI-I
      1 x Video Input-HDMI
      1 x Video Input-YPbPr
      Video Output1 x Video Output Channel(1080p60)
      1 x Video Output-HDMI
      Environment
      Operating Temperature0°C ~ 60°C (32° ~ 140°F), non-condensing
      Functionality
      Multiple Card Support4 cards, 4 channels
      ScalingVideo scaling support, OSD, PIP, Cropping
      Others
      Power Consumption15W
      Software Support
      SDK1 x Linux
      1 x Windows
      OS Support1 x Linux Ubuntu(16.04 (64-bit) (Kernel version: 4.4.0-21-generic))
      1 x Microsoft Windows 7 32-bit
      1 x Microsoft Windows 7 64-bit
      System Requirement
      CPUIntel® Core™2 Duo 2.4GHz or above
      Memory2GB or more
      Video Processing
      Recording Data rate1~30Mbps
      Recording Formats1920 x 1080 24p/25p/30p
      1280 x 1024 30p
      1280 x 800 60p
      1280 x 768 60p
      1280 x 720 50p/60p
      1024 x 768 60p
      800 x 600 60p
      720 x 576 50p
      720 x 480 60p
      640 x 480 60p
      Video Compression1 x Hardware Encoder(H.264/AVC High Profile Level 4.1)
      Video Input Resolution1920 x 1080 24p/25p/30p/50p/60p
      1920 x 1080 60i/59.94i/50i
      1280 x 1024 30p
      1280 x 800 60p
      1280 x 768 60p
      1280 x 720 50p/60p
      1024 x 768 60p
      800 x 600 60p
      720 x 576 50p
      720 x 480 60p
      640 x 480 60p
    • Ordering Info.

      Item No. Description
      HDC-701EL-R10PCI Express Video/Audio Capture Card with HDMI/DVI/DP/YPbPr/SDI input and one HDMI output,1920x1080@30p, and H.264 codec transcoding
    • Package Contents

      • 1 x HDC-701EL

      • 1 x QIG

      • 1 x Utility CD
