Thin Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC with DP++

  • Overview

    ● Thin Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC supports dual-channel DDR3L SO-DIMMs
    ● Triple independent display support
    ● Full size PCIe Mini slot with SIM sockets for WWAN expansion
    ● COM, USB 3.0, SATA 6Gb/s and audio support
    ● IEI one key recovery solution allows you to create rapid OS backup and recovery
  • Features

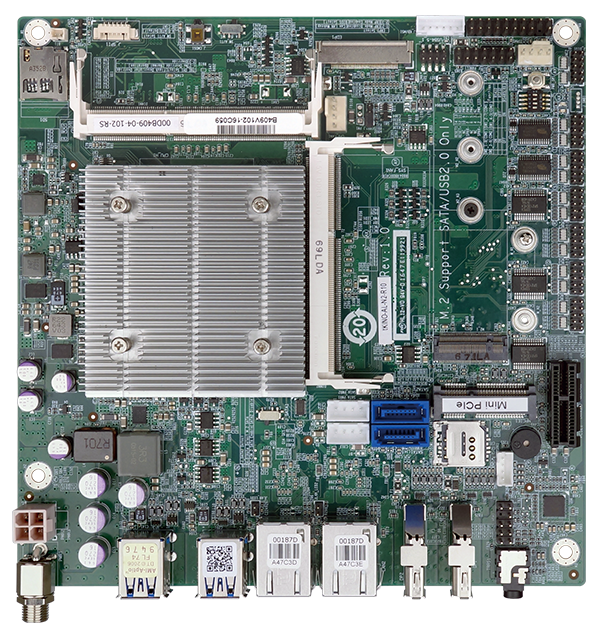

    tkino-al-SBC

    tKINO-AL SBC IO

    Dimensions

    tKINO-AL SBC Dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
      Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
      MemoryTwo 204-pin 1867/1600MHz Dual-channel DDR3L DIMMs
      Memory Max.8GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)170 X 170
      Net Weight700
      Storage
      Storage2 x SATA :6Gb/s with 5V output
      I/O Interface
      Display Output1 x eDP (up to 3840x2160@60Hz)
      2 x DP++ (up to 4096x2160@60Hz)
      AudioDescription: Realtek ALC662 HD codec
      1 x Line out :on rear IO
      1 x Front Audio :2x5 pin
      I/O Interface4 x Internal RS-232 :2x5 pin, P=2.0
      2 x Internal RS-232/422/485 :2x5 pin, P=2.0
      2 x Internal USB 2.0 :2x4 pin, P=2.54
      1 x PS/2 :1x6 pin
      Expansion1 x PCIe x1
      1 x PCIe mini Card Slot :w/ SIM holder
      1 x M.2(NGFF) :B key (2242/2260/2280, USB 2.0 & colay SATA2)
      Other Features
      TPM2x10 pin
      Power
      Power Consumption12V@2.58A (Intel® Pentium® N4200 CPU with two 8GB 1600MHz DDR3L memory)
      Power Supply12V only DC input as Default,1 x Internal power connector (2x2 pin),1 x External DC power Jackc (Ø5.5mm),Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 70°C
      Storage Temperature-40°C ~ 85°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      tKINO-AL-N1-R10 Thin Mini-ITX SBC supports Intel® 14nm dual-core Celeron® N3350 2.4GHz on-board SoC with DP++, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
      tKINO-AL-N2-R10 Thin Mini-ITX SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz on-board SoC with DP++, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
    • Package Contents

      • 1 x tKINO-AL single board computer with heatsink

      • 1 x SATA with power cable kit

      • 1 x I/O Shielding

      • 1 x QIG
