SPCIE-C236

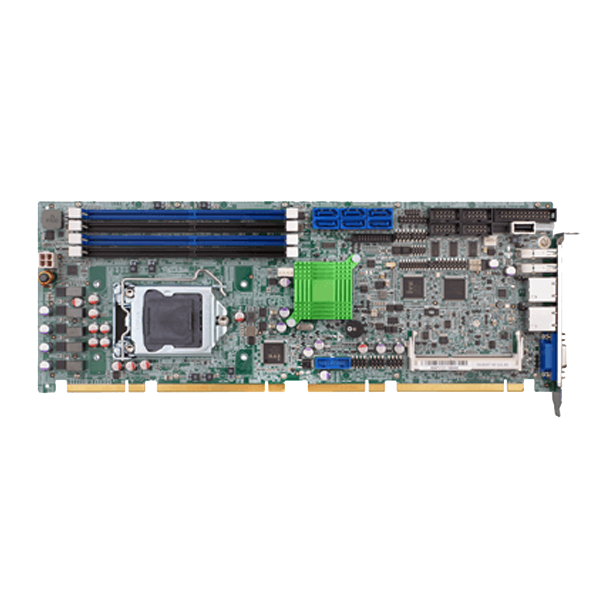

Full-size PICMG 1.3 CPU Card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU per Intel® C236

  • Overview

    ● PICMG 1.3 full-size CPU Card
    ● LGA 1151 Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor supported
    ● Four 288-pin 1867/2133MHz DDR4 ECC & non-ECC unbuffered DIMM
    ● Supports dual independent display by VGA & internal DP pin header
    ● Supports mini-PCIe device & mSATA via mini-PCIe socket
    ● Intel® PCIe GbE with Intel® AMT 11.0 supported
    ● Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s
    ● TPM 1.2 & 2.0 hardware security function supported by TPM module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions338 mm x 126 mm
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      I/O Interface
      Digital I/O8-bit digital I/O
      EthernetLAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 supported
      LAN2: Intel® I210 PCIe controller
      Expansion16-lane PCIe link from CPU via golden finger:
      Supports one PCIe x16, or two PCIe x8, or one PCIe x8 + two PCIe x4 on the backplane
      (configured via BIOS)
      4-lane PCIe link from PCH via golden finger:
      Supports four PCIe x1 slots or one PCIe x4 slot on the backplane (configured via BIOS
      switch)
      One PCIe Mini
      I/O Interface
      I/O Interface6 x SATA 6Gb/s
      2 x Internal RS-232
      2 x Internal RS-232/422/485
      1 x KB/MS((1 x 6Pin Wafer))
      7 x Internal USB 2.0((1 type A 180°, 6 by pin header))
      1 x LPT
      2 x Internal USB 3.0((19 Pin BOX HEADER))
      Option
      iRIS1 x iRIS-2400 slot (optional)
      Power
      Power consumption5V@3.22A, 12V@6.81A, 3.3V@1.21A, 5VSB@0.18A
      (Intel® Xeon® E3-1275 v5 3.60 GHz CPU with 64GB (16GBx4) 2133 MHz DDR4 memory)
      System
      ChipsetIntel® C236
      CPULGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor
      Memory Max.Four 288-pin 1867/2133MHz Dual-Channel DDR4 ECC & non-ECC unbuffered DIMM supported up to 64GB
      Weight
      Weight1000g / NW: 420g
    • Ordering Info.

      Item No. Description
      SPCIE-C236-R10Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® E3-1200/Core™ i3/Pentium®/Celeron® CPU per Intel® C236, DDR4, VGA/IDP, Dual Intel® PCIe GbE, USB3.0, SATA 6Gb/s, PCIe mini, mSATA, HD Audio, iAMT and RoHS
    • Package Contents

      • 1 x SPCIE-C236 single board computer

      • 1 x SATA cable

      • 1 x QIG (Quick Installation Guide)

      • 1 x Mini jumper pack

      • 1 x Utility CD
