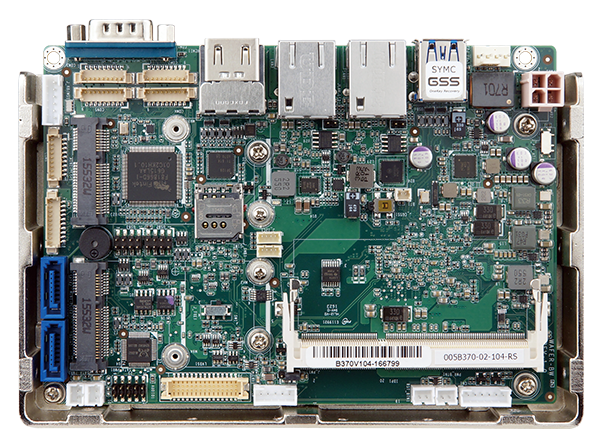

WAFER-BW

3.5” SBC with Intel® 14nm Pentium®/Celeron® on-board SoC

  • Overview

    ● 3.5"" SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC
    ● Triple independent display support
    ● 1.35V DDR3L 1333/1600 MHz SDRAM up to 8 GB
    ● COM, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA and Audio support
    ● Two full-size PCIe Mini slots (one with SIM holder for WLAN/WWAN expansion)
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions146mm x 102mm
      Display
      Display OutputTriple independent display
      2 x HDMI (up to 3840x2160@30Hz)
      1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to
      1920x1200@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion Slots2 x Full/Half-size PCIe Mini card slot (1 w/ SIM holder) (1 w/ mSATA support: share SATA signal from SATA2)
      I/O Interface
      AudioRealtek ALC662 HD codec
      1 x Analog audio (2x5 pin)
      Digital I/O1 x 8-bit digital I/O (1x10 pin, P=1.25)
      EthernetLAN1: Realtek RTL8111GN controller
      LAN2: Realtek RTL8111GN controller
      I/O Interface
      I/O Interface3 x Internal RS-232((1 x 9 pin, P=1.25))
      2 x SATA 6Gb/s(with 5V SATA power connector (no RAID))
      SMBus((1 x 4 pin))
      1 x KB/MS((1 x 6 pin))
      1 x I2C((1 x 4 pin))
      1 x SMBus((1 x 4 pin))
      4 x Internal USB 2.0((2 x 4 pin, P=2.0))
      Power
      Power consumption12V@1.52A (Intel® Pentium® processor N3710 with 8 GB 1600 MHz DDR3L memory)
      Power Supply12V only DC input
      1 x Internal power connector (2x2 pin)
      Support AT/ATX mode
      System
      CPUIntel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
      Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
      Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
      Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)
      Memory Max.One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
      supports up to 8 GB
      Weight
      WeightGW:600g, NW: 250g
    • Ordering Info.

      Item No. Description
      WAFER-BW-N4-R103.5” SBC supports Intel® Pentium® quad-core processor N3710 up to 2.56GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS
      WAFER-BW-N2-R103.5” SBC supports Intel® Celeron® dual-core processor N3060 up to 2.48GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS
      WAFER-BW-N3-R103.5” SBC supports Intel® Celeron® quad-core processor N3160 up to 2.24GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS
    • Package Contents

      • 1 x WAFER-BW single board computer

      • 1 x Audio cable

      • 1 x Power cable

      • 1 x RS-232/422/485 cable

      • 2 x SATA with power cable kit

      • 1 x One Key Recovery CD

      • 1 x QIG (Quick Installation Guide)

      • 1 x Utility CD
