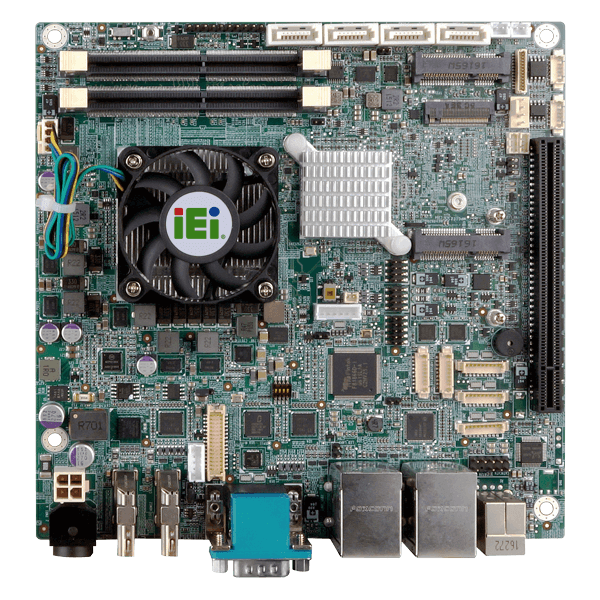

KINO-DQM170

Mini-ITX SBC supports 6th Intel® Core™ Mobile CPU

  • Overview
    ● Mini ITX form fator with 6th Gen Intel® Core™ i7/i5/i3/Celeron® processor support DDR4 memory
    ● Support HDMI 2.0 (4096x2160@60Hz)
    ● Triple display with independent audio via HDMI
    ● PCIe x16, dual PCIe Mini and M.2 A key feature support for various function module
    ● Rich High speed I/O interface for USB 3.0 and SATA 6Gb/s
    ● Support IEI jumpless

  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPU6th generation Intel® Core™ mobile processor
      Intel® Core™ i7-6820EQ (up to 3.5GHz, quad-core, 8M cache, TDP=45W)
      Intel® Core™ i5-6440EQ (up to 3.4GHz, quad-core, 6M cache, TDP=45W)
      Intel® Core™ i3-6102E (up to 1.90GHz, dual-core, 3M cache, TDP=25W)
      Intel® Celeron® G3902E (up to 1.60GHz, dual-core, 2M cache, TDP=25W)
      ChipsetIntel® QM170
      MemoryTwo 260-pin 2133/1866 MHz dual-channel unbuffered DDR4 SDRAM SO-DIMMs
      Memory Max.64GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)170 X 170
      Net Weight450g
      Storage
      Storage4 x SATA :6Gb/s(RAID 0/1/5/10 support)
      I/O Interface
      Display Output3 x HDMI :2 X 1.4 (up to 4096x2160@24Hz);
      1 X 2.0(up to 4096x2160@60Hz);
      1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
      Ethernet2 x LAN :LAN1: Intel® I219LM with (Intel® AMT 11.0 support)
      LAN2: Intel® I211 PCIe controller with NCSI support
      AudioDescription: Realtek ALC662 HD Audio codec supports 5.1-channel
      1 x Line out :on rear IO(colay wirh 3 X audio jack)
      1 x Mic :on rear IO(colay wirh 3 X audio jack)
      1 x Front Audio :2x5 pin
      I/O Interface1 x External RS-232
      3 x Internal RS-232 :1x9 pin, P=1.25
      2 x Internal RS-232/422/485 :1x9 pin, P=1.25
      4 x External USB 3.2 Gen1x1
      4 x Internal USB 2.0 :2x4 pin, p=2.0
      1 x PS/2 :1x6 pin, p=2.0
      Expansion1 x PCIe x16
      2 x PCIe mini Card Slot :1 x Full-size slot(support mSATA), 1 X Half-size slot
      1 x M.2(NGFF) :2230(A key)
      Power
      Power Consumption12V@5.08A (Intel® Core™ i7-6820EQ, 3.5GHz CPU with 16 GB (two 8 GB) 2133 MHz
      DDR4 memory)
      Power Supply12V DC input
      1 x External DC jack (4-pin DIN)
      1 x Internal power connector (2x2 pin)
      Support AT/ATX mode
      Environment
      Operating Temperature-20°C ~ 60°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant

    • Ordering Info.

      Item No. Description
      KINO-DQM170-i7-R10 Mini-ITX SBC supports 6th Intel® Core™ i7-6820EQ processor(45W), HDMI 2.0, SATA 6Gb/s, dual Intel® GbE, USB 3.0, PCIe Mini, M.2, HD Audio and RoHS
      KINO-DQM170-CE-R10 Mini-ITX SBC supports 6th Intel® Celeron® Processor G3902E(25W), HDMI 2.0, SATA 6Gb/s, dual Intel®GbE, USB 3.0, PCIe Mini, M.2, HD Audio and RoHS
      KINO-DQM170-i3E-R10 Mini-ITX SBC supports 6th Intel® Core™ i3-6102E processor(25W), HDMI 2.0, SATA 6Gb/s, dual Intel®GbE, USB 3.0, PCIe Mini, M.2, HD Audio and RoHS
      KINO-DQM170-i5-R10 Mini-ITX SBC supports 6th Intel® Core™ i5-6440EQ processor(45W), HDMI 2.0, SATA 6Gb/s, dual Intel® GbE, USB 3.0, PCIe Mini, M.2, HD Audio and RoHS

    • Package Contents

      • 1 x KINO-DQM170 single board computer with CPU cooler

      • 2 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
