ECW-281B-QGW

QTS-Gateway for Fanless Embedded System with Intel® Celeron® J1900 Processor

End of Life

ECW-281B-QGW-embedded-system-front
ECW-281B-QGW-embedded-system-dimension

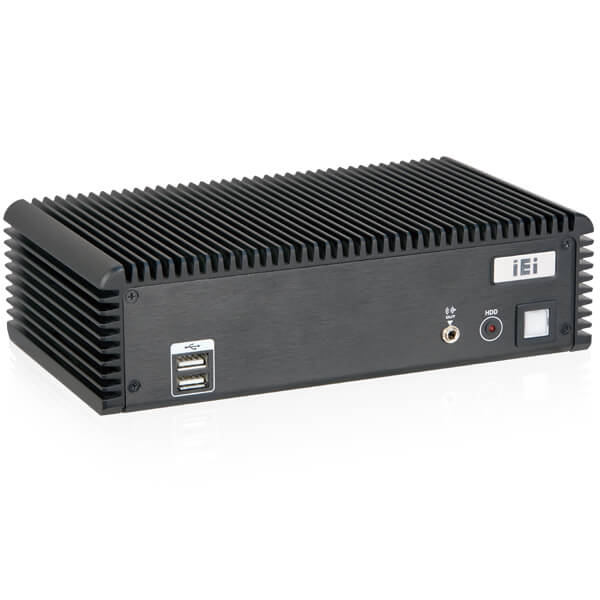

  • ECW-281B-QGW-embedded-system-front

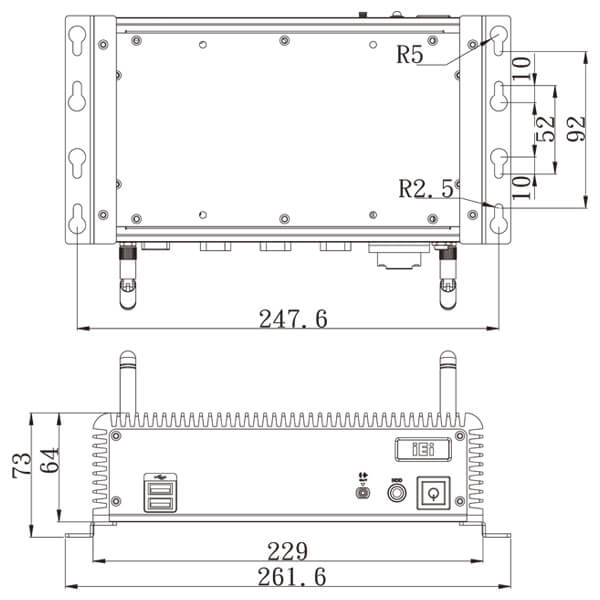

  • ECW-281B-QGW-embedded-system-dimension

End of Life Notice

* Effective Date: 2019/12/30

» Fanless system with Intel® Celeron® J1900 Processor
» Supports four COM ports (three RS-232, one RS-422/485)
» 9~36V DC input support
» Wide operating temperature: -20°C ~ 60°C with SSD
» Pre-install QTS-Gateway

Hardware Spec.

Form factor
SBC Form Factor Intel® Celeron® J1900 processor
(2 GHz, quad-core, 2 MB cache, TDP=10W)
System
Cooling method / System Fan Fanless
Chipset SoC
Memory Max. 1 x 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM (system max. 8 GB)
Drive Bays 1 x 2.5' SATA 3Gb/s HDD Bay
Storage 1 x 2.5' SATA 3Gb/s HDD Bay
I/O Interface
Display 1 x VGA
Audio 1 x Line out
I/O Interface 1 x VGA
3 x USB 2.0
1 x USB 3.0
3 x RS-232
1 x RS-422/485
1 x PCIe GbE by Intel I210
1 x PCIe GbE by Intel I211
1 x Line out
Digital I/O 8-bit digital I/O
Power
Input 3-pin terminal: 9 V~36 V DC
Power consumption 12V@1.45A (with Intel® Celeron® J1900 CPU and one 8 GB 1333 MHz DDR3 memory)
Environment
Operating Temperature -20°C ~ 60°C with air flow (SSD)
Dimensions
Dimensions 229 x 64 x 132
Weight
Weight 2.1 kg / 3.9 kg
Expansion Slots
Expansion Slots 1 x Half-size PCIe Mini card (only for iRIS)
Option
iRIS 1 x iRIS-1010-R10 (optional purchase)

Ordering Information

ECW-281BWD-BTi-QGW-R10 Fanless embedded system with WAFER-BTi-R10,with Intel® Celeron J1900 2GHz, 4 serial ports,with 4GB DDR3L pre-installed SO-DIMM memory, with QTS-Gateway, 9~36VDC in, w/o adapter, black, RoHS

Package Contents

Package Content
  • 1 x Wall mount bracket

  • 1 x Screw set
