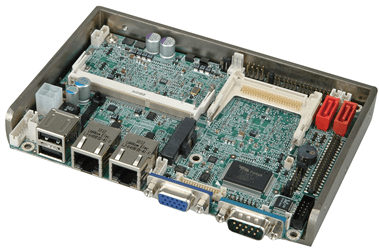

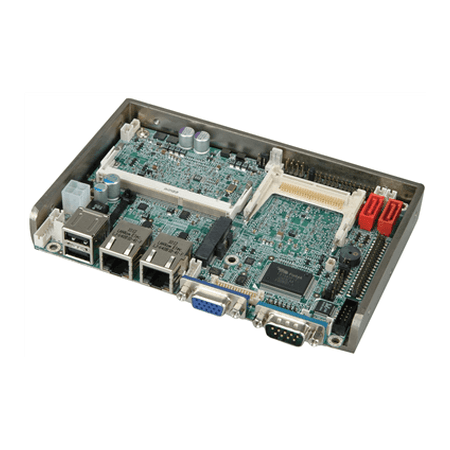

WAFER-PV-D5252/D4252/N4552

3.5” SBC with Intel® Atom™ D425/N455/D525

  • Overview

    ● 3.5” form factor with Intel® Atom™ D525/D425/N455 processor supports DDR3 memory
    ● 12V only single voltage design for AT/ATX power
    ● Open frame heatsink thermal design for fanless solutions
    ● Support VGA and 18-bit single-channel LVDS with dual display support
    ● Complete I/O with eight USB, two SATA 3Gb/s, one CF Type II, six COM and audio
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      DisplayVGA :
      (up to 2048x1536 (D525/D425) or 1400x1050 (N455) @60Hz)
      18-bit single-channel LVDS :
      (up to 1366x768 (D525/D425) or 1024x768 (N455) @60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x Full-size PCIe Mini card slot
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      Digital I/O1 x 8-bit digital I/O (2x5 pin)
      EthernetLAN1: Realtek RTL8111E controllers with ASF2.0 support
      LAN2: Realtek RTL8111E controllers
      I/O Interface
      I/O Interface1 x KB/MS
      1 x RS-232/422/485
      4 x RS-232
      6 x Internal USB 2.0
      Power
      Power consumption12V@1.79A (Intel® Atom™ D525 with one 1 GB 800 MHz DDR3 memory)
      System
      CPUIntel® Atom™ D525 (1.8GHz, dual-core, 1MB cache)
      Intel® Atom™ D425 (1.8GHz, single-core, 512KB cache)
      Intel® Atom™ N455 (1.66GHz, single-core, 512KB cache)
      Memory Max.One 204-pin 800 MHz DDR3 SDRAM SODIMM slot supports up to 4 GB (D525/D425) or 2 GB (N455)
    • Ordering Info.

      Item No. Description
      WAFER-PV-D5252-R113.5" SBC with Intel® Atom™ D525 1.8GHz, DDR3, VGA/LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS
      WAFER-PV-D4252-R113.5" SBC with Intel® Atom™ D425 1.8GHz, DDR3, VGA/LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS
      WAFER-PV-N4552-R113.5" SBC with Intel® Atom™ D455 166GHz, DDR3, VGA/LVDS, dual GbE, USB 2.0 and SATA 3Gb/s, audio, RoHS
    • Package Contents

      • 1 x WAFER-PV-D5252/D4252/N4552 single board computer

      • 1 x Audio cable

      • 1 x Heat spreader

      • 1 x KB/MS cable

      • 1 x Mini jumper pack

      • 1 x Power cable

      • 1 x One Key Recovery CD

      • 1 x Quad RS-232 cable

      • 1 x Utility CD

      • 1 x SATA with 5V output cable

      • 1 x QIG
