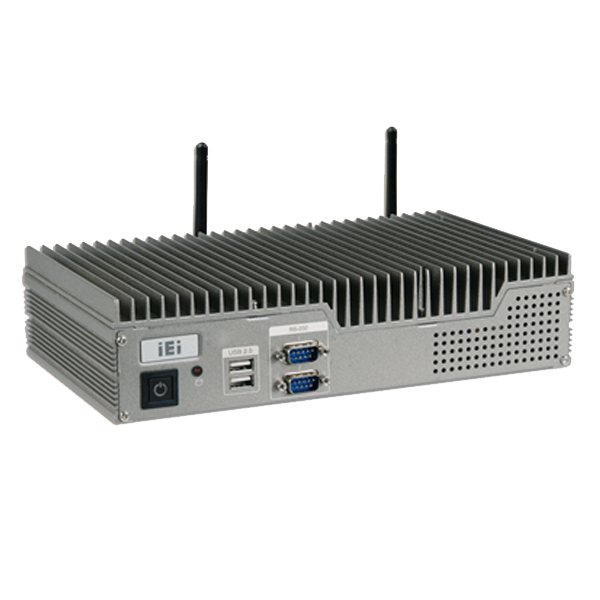

ECN-380-QM87

Fanless Embedded System with Intel® Solution

  • Overview

    ● Intel® Core™ i5/Celeron® CPU » Intel® Core™ i5-4400E 2.7 GHz/Celeron® 2000E 2.2 GHz
    ● Triple video outputs » 2 x HDMI + VGA
    ● Two 2.5” SATA 6Gb/s HDD/SSD drive bays
  • Specifications

    • Hardware Spec.

      Spec Item Description
      I/O Interface
      I/O Ports 2 x USB 3.0
      4 x USB 2.0
      Ethernet:
      2 x RJ-45
      LAN1: Intel® I217LM PHY with Intel® AMT 9.0 support
      LAN2: Intel® I210-AT PCIe controller
      2 x RS-232
      2 x HDMI
      1 x VGA
      Resolution:
      VGA: Up to 1920 x 1200@60Hz
      HDMI: Up to 2500 x 1600@60Hz
      Audio:1 x Line-out, 1 x Mic-in
      Wireless
      1 x 802.11b/g/n (optional)
      Expansion Slots
      Expansion Slots PCIe Mini:
      1 x Full-size PCIe Mini (support mSATA, SATA 6Gb/s signal only)
      1 x Half-size PCIe Mini (only for iRIS-1010)
      System
      Cooling method / System Fan Fanles
      Drive Bays 2 x 2.5’ SATA HDD/SSD bay
      Physical Characteristics
      Construction 12 V@4.6 A(Intel® mobile Core™ i5-4400E with 4GB 1333MHz DDR3 memory)
      Color
      Color Silver
      Dimensions
      Dimensions 265 x 134 x 56.7
      Weight
      Weight 2.4 kg/4.2 kg
      Environment
      Operating Temperature -10°C~60°C with air flow (SSD)
      Humidity 5% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      ECN-380-QM87i-i5/WD/4G-R11Fanless embedded system with Intel® Core™ i5-4400E 2.7 GHz, TDP 37W, 2 x HDMI, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 9 V~36V DC, RoHS
      ECN-380-QM87i-C/4G-R11Fanless embedded system with Intel® Celeron® 2000E 2.2 GHz, TDP 37W, 2 x HDMI, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 12 V DC, RoHS
      ECN-380-QM87i-C/WD/4G-R11Fanless embedded system with Intel® Celeron® 2000E 2.2 GHz, TDP 37W, 2 x HDMI, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 9 V~36 V DC, RoHS
      ECN-380-QM87i-i5/4G-R11Fanless embedded system with Intel® Core™ i5-4400E 2.7 GHz, TDP 37W, 2 x HDMI, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 12 V DC, RoHS
