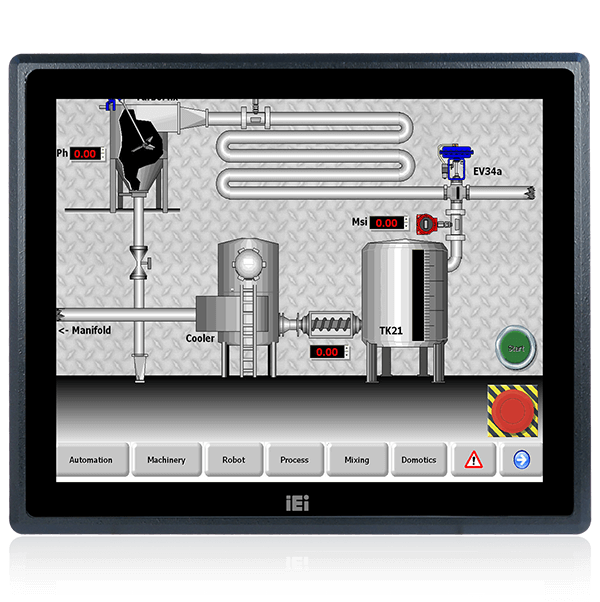

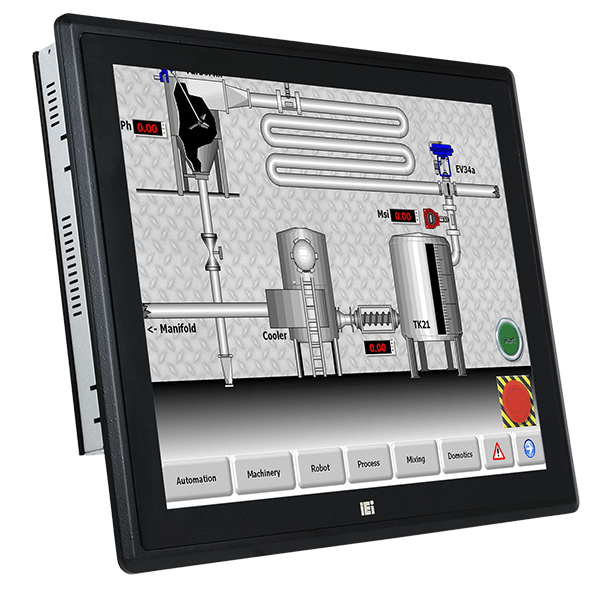

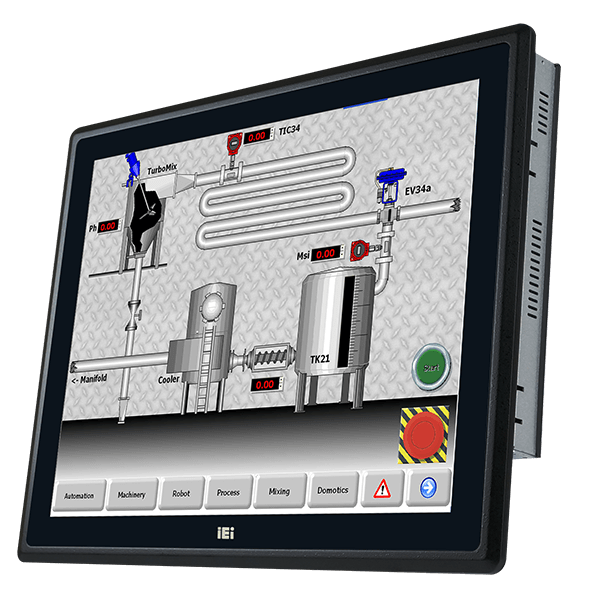

PPC-F17B-BT

17” Fanless Intel® Bay Trail Solution

  • Overview
    ● Support IEI iRIS-2400 remote intelligent solution
    ● Intel® Celeron® J1900 quad-core SoC
    ● Robust IP65 aluminum front bezel
    ● Aesthetic ultra-thin bezel for seamless panel mount installation
    ● Projected capacitive multi-touch and resistive single touch options
    ● Dual full-size PCIe Mini card expansion
    ● 9V~36V DC wide range DC input

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs) 50000
      Brightness(cd/m2) 350
      Contrast Ratio 800:1
      LCD Size 17""(5:4)
      Max Resolution 1280 (W) x 1024 (H)
      Environment
      Humidity 10% to 95% (non-condensing)
      IP Level IP 65 compliant front panel
      Operating Temperature -10°C~50°C (14°F~122°F)
      Storage Temperature -20°C~60°C (-4°F~140°F)

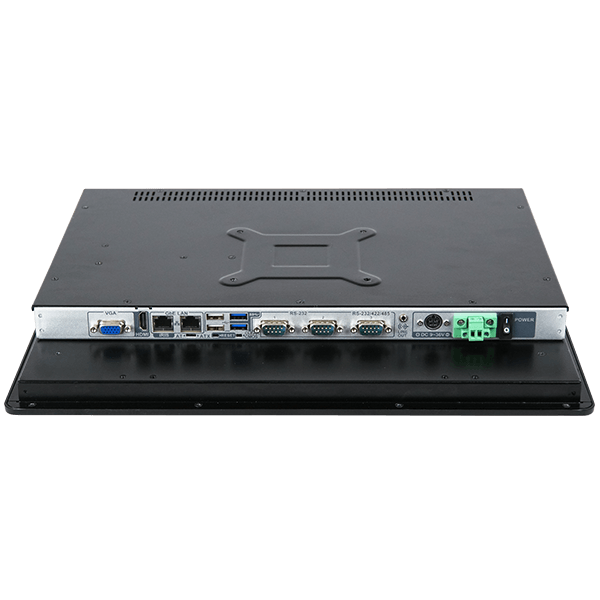

      I/O Interface
      I/O Ports and Switches 2 x RJ-45 LAN Port
      2 x USB 3.0
      2 x USB 2.0
      1 x HDMI output
      2 x RS-232
      1 x RS-232/RS-422/485
      1 x VGA
      1 x 9 V~36 V DC jack (4-pin)
      1 x 9 V~36 V DC terminal block
      1 x Line-out (PPC-F15B and PPC-17B only)
      1 x Power switch
      LCD
      LCD Color 16.7M
      Pixel Pitch (mm) 0.26 x 0.26
      Viewing Angle (H-V) 170° / 160°
      Physical Characteristics
      Cutout Dimensions 323 x 390
      Dimensions (LxWxH) (mm) 341.4 x 408.4 x 51.8
      Power
      Power adapter 9V~36V DC
      Touch
      Touch Controller 5-wire resistive single-touch type flat touchscreen 3H
      Touch Screen 2-point projected capacitive type touchscreen 6H
      Weight
      Weight 5 kg

    • Ordering Info.

      Item No. Description
      PPC-F17B-BTi-J1/2G/PC-R12 17" 350 cd/m2 SXGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, projected capacitive touch window with AG coating, R12
      PPC-F17B-BTi-J1/2G/R-R12 17" 350 cd/m2 SXGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, resistive touch window with AG coating, R12

    • Package Contents

      • 1 x PPC-FxxB-BTi Panel PC

      • 1 x User Manual

      • 1 x Touch Pen

      • 1 x Power Cord

      • 1 x Screw Pack

      • 1 x Power Adapter
