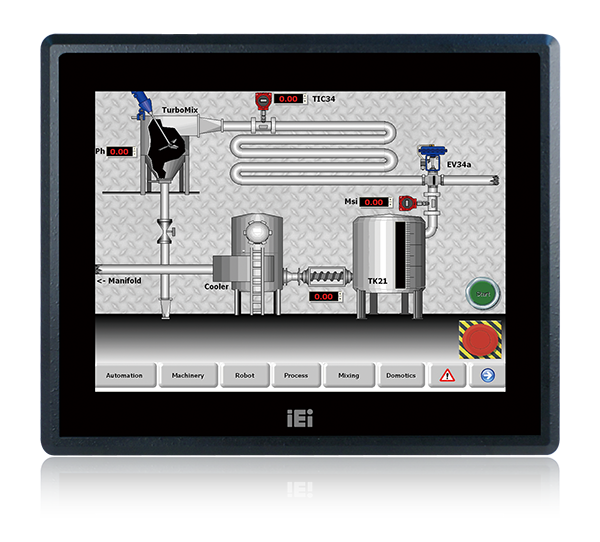

PPC-F12B-BT

12” Fanless Intel® Bay Trail Solution

  • Overview

    ● Support IEI iRIS-2400 remote intelligent solution
    ● Intel® Celeron® J1900 quad-core SoC
    ● Robust IP65 aluminum front bezel
    ● Aesthetic ultra-thin bezel for seamless panel mount installation
    ● Projected capacitive multi-touch and resistive single touch options
    ● Dual full-size PCIe Mini card expansion
    ● 9V~36V DC wide range DC input
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs)50000
      Brightness(cd/m2)600
      Contrast Ratio700:1
      LCD Size12.1""(4:3)
      Max Resolution1024 (W) x 768 (H)
      Environment
      Humidity10% to 95% (non-condensing)
      IP LevelIP 65 compliant front panel
      Operating Temperature-10°C~50°C (14°F~122°F)
      Storage Temperature-20°C~60°C (-4°F~140°F)
      I/O Interface
      I/O Ports and Switches2 x RJ-45 LAN Port
      2 x USB 3.0
      2 x USB 2.0
      1 x HDMI output
      2 x RS-232
      1 x RS-232/RS-422/485
      1 x VGA
      1 x 9 V~36 V DC jack (4-pin)
      1 x 9 V~36 V DC terminal block
      1 x Line-out (PPC-F15B and PPC-17B only)
      1 x Power switch
      LCD
      LCD Color16.2M
      Pixel Pitch (mm)0.24 x 0.24
      Viewing Angle (H-V)160° / 140°
      Physical Characteristics
      Cutout Dimensions244.8 x 304.8
      Dimensions (LxWxH) (mm)262.2 x 322.2 x 47.2
      Power
      Power adapter9V~36V DC
      Touch
      Touch Controller5-wire resistive single-touch type flat touchscreen 3H
      Touch Screen2-point projected capacitive type touchscreen 6H
      Weight
      Weight3.2 kg
    • Ordering Info.

      Item No. Description
      PPC-F12B-BTi-J1/2G/PC-R1212.1" 600 cd/m2 XGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, projected capacitive touch window with AG coating, R12
      PPC-F12B-BTi-J1/2G/R-R1212.1" 600 cd/m2 XGA Panel PC with IntelR CeleronR Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, resistive touch window with AG coating, R12
    • Package Contents

      • 1 x PPC-FxxB-BTi Panel PC

      • 1 x User Manual

      • 1 x Touch Pen

      • 1 x Power Cord

      • 1 x Screw Pack

      • 1 x Power Adapter
