KINO-DQM871-i1

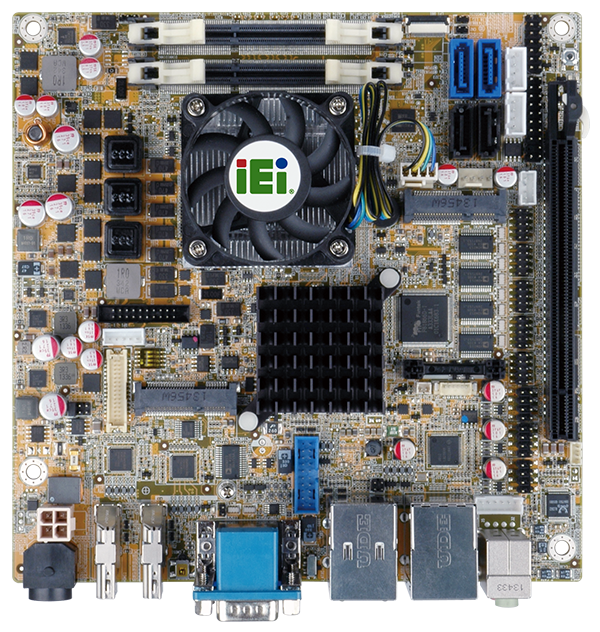

Mini-ITX SBC supports 4th generation 22nm IntelR mobile processors,

  • Overview

    ● 4th generation IntelR mobile Core? i7/i5/i3 or CeleronR on-board processor
    ● DDR3 1066/1333/1600 MHz dual-channel SDRAM
    ● HDMI 1.4a compliant, triple independent display supported
    ● 3D micro-architecture enhancement supports DX11.1, OCL 1.2 and OGL3.2
    ● Rich media acceleration for hardware decode and encode acceleration
    ● IntelR GbE LAN with IntelR AMT 9.0 support
    ● High speed I/O interface for PCIe Gen 3.0 add-on card, USB 3.0 and SATA 6Gb/s supported
    ● Supports dual PCIe Mini expansion for PCIe Mini device and mSATA
    ● IEI jumper-less function
    ● Support IPMI 2.0 with iRIS-1010 module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions170mm x 170mm
      Display
      Display OutputVGA (up to 1920x1200@60Hz)
      18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
      Dual HDMI (up to 2500x1600@60Hz)
      iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x RS-232
      2 x USB 2.0
      2 x USB 3.0
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      Digital I/O8-bit digital I/O (4-bit input, 4-bit output)
      EthernetGBE1: Intel® I217LM with Intel® AMT 9.0 support
      GBE2: Intel® I210-AT PCIe controller
      I/O Interface
      I/O Interface1 x Internal RS-232/422/485
      2 x Internal USB 3.0
      6 x Internal USB 2.0
      1 x KB/MS
      4 x Internal RS-232
      Option
      iRIS1 x iRIS-1010 slot
      Power
      Power consumption12V@6.03A (Intel® Core™ i7-4770EQ, 2.4GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory)
      System
      ChipsetIntel® QM87
      CPUIntel® mobile Core™ i7-4700EQ on-board processor with Intel® AMT 9.0 support (2.4GHz, quadcore, 6MB cache, TDP=47W)
      Intel® mobile Core™ i5-4402E on-board processor with Intel® AMT 9.0 support (1.6GHz, dual-core, 3MB cache, TDP=25W)
      Intel® mobile Core™ i3-4102E on-board processor (1.6GHz, dual-core, 3MB cache, TDP=25W)
      Intel® mobile Celeron® 2002E on-board processor (1.5GHz, dual-core, 2MB cache, TDP=25W)
      Intel® mobile Core™ i5-4400E on-board processor with Intel® AMT 9.0 support (2.7GHz, dual-core, 3MB cache, TDP=37W)(by request)
      Intel® mobile Core™ i3-4100E on-board processor (2.4GHz, dual-core, 3MB cache, TDP=37W)(by request)
      Intel® mobile Celeron® 2000E on-board processor (2.2GHz, dual-core, 2MB cache, TDP=37W)(by request)
      Memory Max.Two 204-pin 1066/1333/1600 MHz DDR3 dual-channel SO-DIMMs (support up to 16 GB)
    • Ordering Info.

      Item No. Description
      KINO-DQM871-i1-CE-R10Mini-ITX SBC supports Intel® 22nm 4th Generation Mobile Celeron™ 2002E processor (25W), HDMI / VGA / LVDS / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
      KINO-DQM871-i1-i3E-R10Mini-ITX SBC supports Intel® 22nm 4th Generation Mobile Core™ i3-4102E processor(25W), HDMI / VGA / LVDS / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
      KINO-DQM871-i1-i7-R10Mini-ITX SBC supports Intel® 22nm 4th Generation Mobile Core™ i7-4700EQ processor (47W), HDMI / VGA / LVDS / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
      KINO-DQM871-i1-i5E-R10Mini-ITX SBC supports Intel® 22nm 4th Generation Mobile Core™ i5-4402E processor(25W), HDMI / VGA / LVDS / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
    • Package Contents

      • 1 x KINO-DQM871-i1 motherboard

      • 1 x CPU cooler

      • 1 x Mini jumper pack

      • 1 x I/O shielding

      • 1 x QIG

      • 2 x SATA with power output cable

      • 1 x Utility CD
