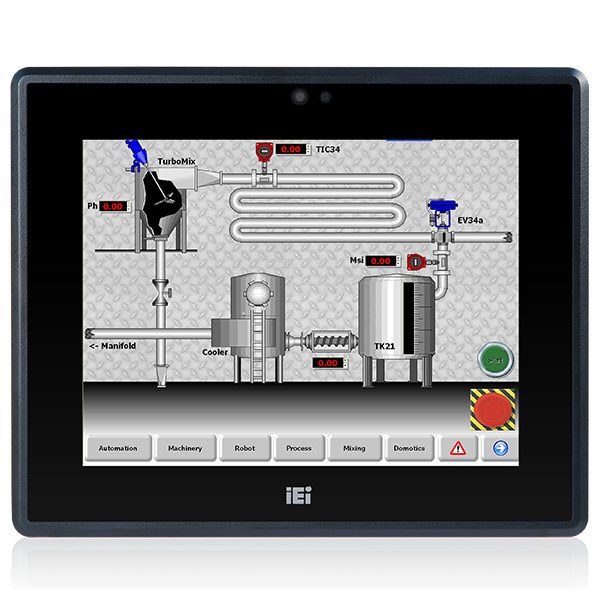

PPC-F10B-BT

5.7”/8”/10.4” Fanless Intel® Bay Trail Solution

  • Overview

    ● 5.7”, 8” and 10.4” fanless industrial panel PC
    ● 2.0 GHz Intel® Celeron® J1900 quad-core processor or 1.58 GHz Intel® Celeron® N2807 dual-core processor
    ● Low power consumption DDR3L memory supported
    ● IP 65 compliant front panel
    ● 9 V~30 V wide DC input
    ● mSATA SSD suppoted
    ● Dual GbE for backup
    ● -10°C~50°C extended operating temperature
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs) 50000
      Brightness(cd/m2) 500
      Contrast Ratio 500:1
      LCD Size 8”(4:3)
      Max Resolution 800(W) x 600(H)
      Environment
      Humidity 10% to 95% (non-condensing)
      IP Level Front IP 65
      Operating Temperature -10°C~50°C (14°F~122°F)
      Safety & EMC CE & FCC Class A certified
      Storage Temperature -20°C~60°C (-4°F~140°F)
      Expansion Slots
      Expansion Slots 1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal)
      1 x Full-size/Half-size PCIe Mini slot (PCIe signal only)
      I/O Interface
      I/O Ports and Switches 1 x RJ-45 LAN port
      1 x RS-232 COM port (DB-9 connector)
      (RI/5V/12V)
      1 x RS-422/485
      2 x USB 3.0
      1 x 9 V~30 V DC lockable DC jack (2-pin)
      1 x Audio port (line-out)
      1 x Power switch
      RAM 2 x 204-pin DDR3L SO-DIMM slots (max. 8GB)
      LCD
      LCD Color 16.2M
      Pixel Pitch (mm) 0.2025 (H) x 0.0675 (V)
      Viewing Angle (H-V) 140° / 120°
      Physical Characteristics
      Color Black C
      Construction Aluminum front bezel
      Cutout Dimensions 207 x 154
      Dimensions (LxWxH) (mm) 182.2 x 222.2 x 44
      Mounting Stand, panel mount, rack mount,
      VESA 75x75
      Power
      Power adapter 9V~30VDC
      System
      CPU Intel® Celeron® J1900 quad-core on-board SoC, 2GHz
      SSD mSATA
      Touch
      Touch Screen 5-wire resistive type flat touchscreen
      Weight
      Weight 1.17 kg
      I/O Interface
      I/O Interface 1 x AT/ATX Switch
      1 x Audio(line-out)
      2 x LAN(GbE)
      1 x Power In(9-30V Lockable power jack)
      1 x Power Switch
      1 x RS-232(RJ-45)
      1 x RS-422/485(DB-9)
      1 x Reset Button
      2 x USB3.0
      Display
      Backlight MTBF(hrs) 30000
      Brightness(cd/m2) 400
      Contrast Ratio 700:1
      LCD Size 10.4”
      Max Resolution 800(W) x 600(H)
      Environment
      Humidity 10% to 95% (non-condensing)
      IP Level Front IP 65
      Operating Temperature -10°C~50°C (14°F~122°F)
      Safety & EMC CE & FCC Class A certified
      Storage Temperature -20°C~60°C (-4°F~140°F)
      Expansion Slots
      Expansion Slots 1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal)
      1 x Full-size/Half-size PCIe Mini slot (PCIe signal only)
      I/O Interface
      I/O Ports and Switches 1 x RJ-45 LAN port
      1 x RS-232 COM port (DB-9 connector)
      (RI/5V/12V)
      1 x RS-422/485
      2 x USB 3.0
      2 x USB 2.0
      1 x 9 V~30 V DC lockable DC jack (2-pin)
      1 x Audio port (line-out)
      1 x Power switch
      RAM 2 x 204-pin DDR3L SO-DIMM slots (max. 8GB)
      LCD
      LCD Color 16.2M
      Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
      Viewing Angle (H-V) 160° / 140°
      Physical Characteristics
      Color Black C
      Construction Aluminum front bezel
      Cutout Dimensions 267.2 x 214.4
      Dimensions (LxWxH) (mm) 232.4 x 285.2 x 44
      Mounting Stand, panel mount, rack mount,
      VESA 75x75
      Power
      Power adapter 9V~30VDC
      System
      CPU Intel® Celeron® J1900 quad-core on-board SoC, 2GHz
      Storage 1 x mSATA, 1 x 2.5” HDD Bay
      Touch
      Touch Screen 5-wire resistive type flat touchscreen
      Weight
      Weight 1.77 kg
      I/O Interface
      I/O Interface 1 x AT/ATX Switch
      1 x Audio(line-out)
      2 x LAN(GbE)
      1 x Power In(9-30V Lockable power jack)
      1 x Power Switch
      1 x RS-232(RJ-45)
      1 x RS-422/485(DB-9)
      1 x Reset Button
      2 x USB2.0
      2 x USB3.0
    • Ordering Info.

      Item No. Description
      PPC-F10B-BT-J1/2G/R-R10 10.4 inch 400 cd/m2 SVGA Panel PC with Intel® Celeron® Processor J1900, TDP 10W, 2GB DDR3L RAM, black color, 9-30V DC input, resistive touch window, R10
    • Package Contents

      • 1 x PPC-FxxB-BTi Panel PC

      • 1 x User Manual

      • 1 x Touch Pen

      • 1 x Power Cord

      • 1 x Screw Pack

      • 1 x Power Adapter
