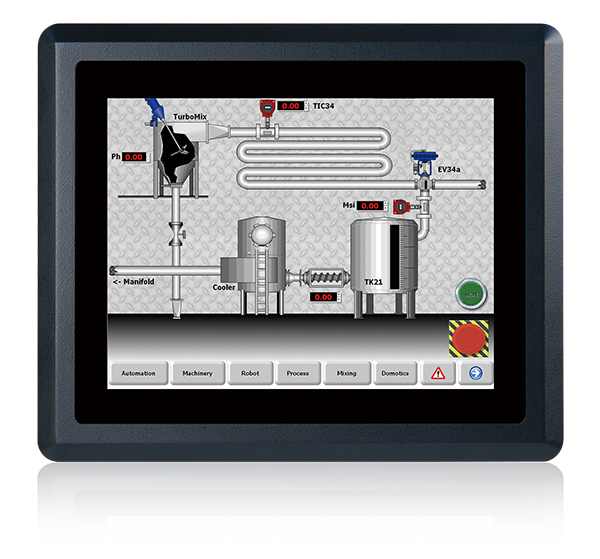

5.7”/8”/10.4” Fanless Intel® Bay Trail Solution

  • Overview

    ● 5.7”, 8” and 10.4” fanless industrial panel PC
    ● 2.0 GHz Intel® Celeron® J1900 quad-core processor or 1.58 GHz Intel® Celeron® N2807 dual-core processor
    ● Low power consumption DDR3L memory supported
    ● IP 65 compliant front panel
    ● 9 V~30 V wide DC input
    ● mSATA SSD suppoted
    ● Dual GbE for backup
    ● -10°C~50°C extended operating temperature
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Backlight MTBF(hrs)50000
      Contrast Ratio500:1
      LCD Size8”(4:3)
      Max Resolution800(W) x 600(H)
      Humidity10% to 95% (non-condensing)
      IP LevelFront IP 65
      Operating Temperature-10°C~50°C (14°F~122°F)
      Safety & EMCCE & FCC Class A certified
      Storage Temperature-20°C~60°C (-4°F~140°F)
      Expansion Slots
      Expansion Slots1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal)
      1 x Half-size PCIe Mini slot for Wi-Fi modules
      I/O Interface
      I/O Ports and Switches1 x RJ-45 LAN port
      1 x RS-232 COM port (DB-9 connector)
      1 x RS-422/485
      2 x USB 3.0
      1 x 9 V~30 V DC lockable DC jack (2-pin)
      1 x Audio port (line-out)
      1 x Power switch
      RAM2 x 204-pin DDR3L SO-DIMM slots (max. 8GB)
      LCD Color16.2M
      Pixel Pitch (mm)0.2025 (H) x 0.0675 (V)
      Viewing Angle (H-V)140° / 120°
      Physical Characteristics
      ColorBlack C
      ConstructionAluminum front bezel
      Cutout Dimensions207 x 154
      Dimensions (LxWxH) (mm)182.2 x 222.2 x 44
      MountingStand, panel mount, rack mount,
      VESA 75x75
      Power adapter9V~30VDC
      CPUIntel® Celeron® J1900 quad-core on-board SoC, 2GHz
      Touch Screen5-wire resistive type flat touchscreen
      Weight1.17 kg
      I/O Interface
      I/O Interface2 x LAN((GbE))
      1 x Power Switch
      1 x RS-232((RJ-45))
      1 x RS-422/485((DB-9))
      1 x Reset Button
      2 x USB3.0
      1 x Power In((9-30V Lockable power jack))
      1 x Audio(((line-out)))
      1 x AT/ATX Switch
    • Ordering Info.

      Item No. Description
      PPC-F08B-BT-J1/2G/R-R108 inch 500 cd/m2 SVGA Panel PC with Intel® Celeron® Processor J1900, TDP 10W, 2GB DDR3L RAM, black color, 9-30V DC input, resistive touch window, R10
    • Package Contents

      • 1 x PPC-FxxB-BTi Panel PC

      • 1 x User Manual & Driver CD

      • 1 x One Key Recovery CD

      • 1 x Touch Pen

      • 1 x Power Cord

      • 1 x Screw Pack

      • 1 x Power Adapter
