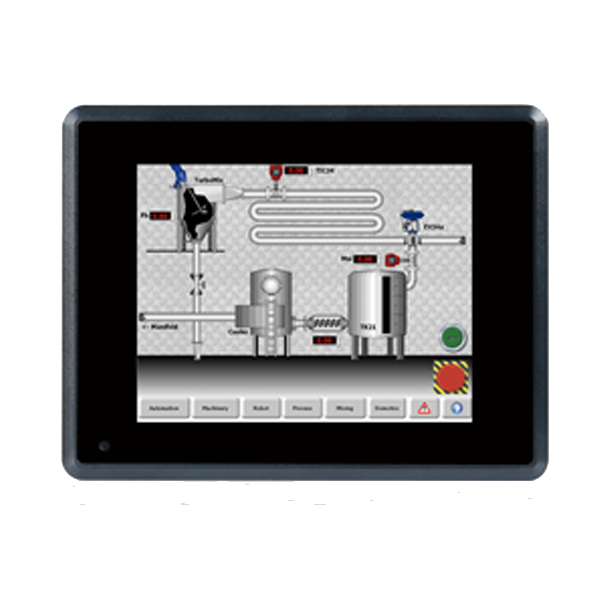

PPC-F06B-BT

5.7”/8”/10.4” Fanless Intel® Bay Trail Solution

  • Overview

    ● 5.7”, 8” and 10.4” fanless industrial panel PC
    ● 2.0 GHz Intel® Celeron® J1900 quad-core processor or 1.58 GHz Intel® Celeron® N2807 dual-core processor
    ● Low power consumption DDR3L memory supported
    ● IP 65 compliant front panel
    ● 9 V~30 V wide DC input
    ● mSATA SSD suppoted
    ● Dual GbE for backup
    ● -10°C~50°C extended operating temperature
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs)50000
      Brightness(cd/m2)550
      Contrast Ratio800 : 1
      LCD Size5.7”(4:3)
      Max Resolution640(W) x 480(H)
      Environment
      Humidity10% to 95% (non-condensing)
      IP LevelFront IP 65
      Operating Temperature-10°C~50°C (14°F~122°F)
      Safety & EMCCE & FCC Class A certified
      Storage Temperature-20°C~60°C (-4°F~140°F)
      Expansion Slots
      Expansion Slots1 x Full-size PCIe Mini slot
      (with mSATA, PCIe/USB signal)
      I/O Interface
      I/O Ports and Switches1 x RJ-45 LAN port
      1 x RS-232 COM port (DB-9 connector)
      (RI/5V/12V)
      1 x RS-422/485
      2 x USB 3.0
      2 x USB 2.0
      1 x 9 V~30 V DC lockable DC jack (2-pin)
      1 x Audio port (line-out)
      1 x Power switch
      RAM2GB DDR3L 1600MHz on-board RAM
      (system max. 4GB, by MOQ=300pcs)
      LCD
      LCD Color262K
      Pixel Pitch (mm)0.18mm x 0.18mm
      Viewing Angle (H-V)160° / 140°
      Physical Characteristics
      ColorBlack C
      ConstructionAluminum front bezel
      Cutout Dimensions157.5 x 115.4
      Dimensions (LxWxH) (mm)136.4 x 178.5 x 56.3
      MountingStand, panel mount, rack mount,
      VESA 75x75
      Power
      Power adapter9V~30VDC
      System
      CPUIntel® Celeron® N2807
      dual-core processor, 1.58GHz
      SSDmSATA
      Touch
      Touch ControllerPenMount DMC9000
      Touch Screen4-wire resistive type flat touch window
      Weight
      Weight0.89Kg
      I/O Interface
      I/O Interface1 x AT/ATX Switch
      2 x USB3.0
      2 x USB2.0
      1 x Reset Button
      1 x Power In((9-30V Lockable power jack))
      1 x RS-232(((DB-9)))
      1 x Power Switch
      1 x LAN((RJ-45))
      1 x Audio(((line-out)))
      1 x RS-422/485
    • Ordering Info.

      Item No. Description
      PPC-F06B-BT-N1/2G/R-R105.7 inch 450 cd/m2 VGA Panel PC with Intel® Celeron® Processor N2807, TDP 4.3W, 2GB on-board DDR3L RAM, black color, 9-30V DC input, resistive touch window, R10
    • Package Contents

      • 1 x PPC-FxxB-BTi Panel PC

      • 1 x User Manual & Driver CD

      • 1 x One Key Recovery CD

      • 1 x Touch Pen

      • 1 x Power Cord

      • 1 x Screw Pack

      • 1 x Power Adapter
