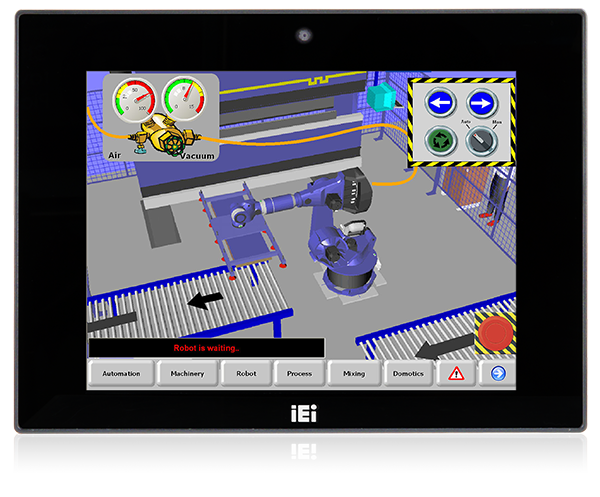

AFL3-08A-BT

Intel® Celeron® J1900 (Dual Core, 2.0 GHz)

  • Overview
    ● W7”~8.4” light industrial interactive panel PC
    ● 9 V ~ 30 V wide range DC input with lockable DC jack
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● One mSATA slot
    ● IP64/IP65 compliant front panel
    ● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions 233 x 175 x 50
      Environment
      Humidity 10% to 95% (non-condensing)
      Operating Temperature -10°C~50°C
      Safety & EMC CE/FCC
      Storage Temperature -20°C~60°C
      I/O Interface
      Audio ALC892
      Ethernet 2 x PCIe GbE by RTL8111E controller
      LCD
      Brightness (cd/m2) 450
      Contrast Ratio 600:1
      LCD Color 16.2M
      Pixel Pitch (mm) 0.213 (H) x 0.213 (V)
      Resolution 800 x 600 (4:3)
      Size 8.4”
      Viewing Angle (H-V) 160º / 140º
      Power
      Power consumption 12V@2A(Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
      Power Requirement 9 V ~ 30 V
      System
      CPU Intel® Celeron® J1900 (quad core, 2.0 GHz)
      Memory Max. One 204-pin 2 GB 1333MHz single-channel, 2GB
      DDR3L SDRAM pre-installed (system max. 8GB)
      Storage mSATA
      Touch
      Touch Controller EETI EXC3160
      Touch Screen Projected capacitive type
      Weight
      Weight 0.8/2.44
      I/O Interface
      I/O Interface 1 x Reset Button
      1 x Power Switch
      1 x AT/ATX switch
      1 x DC Input Jack(9-30V Lockable)
      1 x LAN(Gbe)
      2 x USB 3.0
      2 x USB 2.0
      1 x Audio((line-out))
      1 x RS-232((RJ45 connector))
      1 x RS-422/485((DB-9 connector))

    • Ordering Info.

      Item No. Description
      AFL3-08A-BT-J1/PC/2G-R13 8.4" 450cd/m² SVGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11 a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R13

    • Package Contents

      • 2 x Setting kit

      • 6 x Round head machine screw

      • 4 x Pan head machine screw

      • 2 x Fix holder

      • 2 x Power cord

      • 1 x Power adapter

      • 1 x Touch pen
