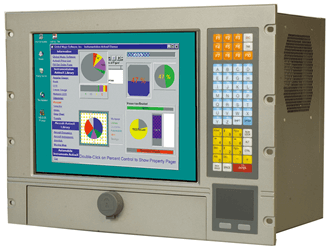

WS-855GS

15” IP 64 Waterproof Workstation: Robust, Shock Resistance

End of Life

End of Life Notice

* Effective Date: 2018/04/30

» Die-cast aluminum front panel with integrated LCD screen
» New robust chassis and retention kit structure for shock and vibration
» Front panel, membrane keys, mouse pad and drive-bay enclosure meet IP 64 standard for tough environment
» Full function membrane keys and submerged OSD controller
» Advanced thermal and air-flow design
» Analog VGA interface supports all CPU boards

Hardware Spec.

Dimensions
Dimensions 483 x 353 x 261
Environment
Humidity 10%~95%, non-condensing
Operating Temperature 0°C ~ 50°C
Storage Temperature -10°C ~ 60°C
Function Key
Function Key 10 Keys
KeyPad
KeyPad 59 Keys
LCD
Backlight MTBF 70000 (LED Backlight)
Brightness (cd/m2) 450
Contrast Ratio 800:1
LCD Color 16.2M
Resolution 1024 x 768
Size 15”
Touch
Touch Screen 5-wire resistive touch screen
Weight
Weight 12 kg / 18.2 kg

Ordering Information

WS-855GSATX/A130B/R-R40 8U m-ATX 15" 450cd/m² XGA LCD workstation with ACE-A130B-R10 300W ATX with PFC power supply and 15" resistive touch screen, M-ATX version,RoHS, R40
WS-855GS/A130B/R-R40 8U 15" 450cd/m² XGA LCD 10-slot industrial workstation with ACE-A130B-R10 300W ATX with PFC power supply and 15" resistive touch screen,RoHS, R40

Package Contents

Package Content
  • 1 x AC Power Cable 1

  • 1 x VGA Cable

  • 1 x PS_ON Cable for ATX signal

  • 4 x Press Stick Kit (Long)

  • 3 x Press Stick Kit (Short)

  • 7 x Press Stick Rubber

  • 1 x User Manual

  • 1 x KeyPad / MousePad PS/2 Cable (For SBC Models)

  • 1 x KeyPad / MousePad PS/2 Cable (For m-ATX (Motherboards) Models

  • 1 x RS-232 Cable / Touch Pen for Touch Screen
