AFL3-W15A-BT

Intel® Celeron® J1900 (Quad Core, 2.0 GHz)

End of Life

End of Life Notice

* Effective Date: 2023/10/17

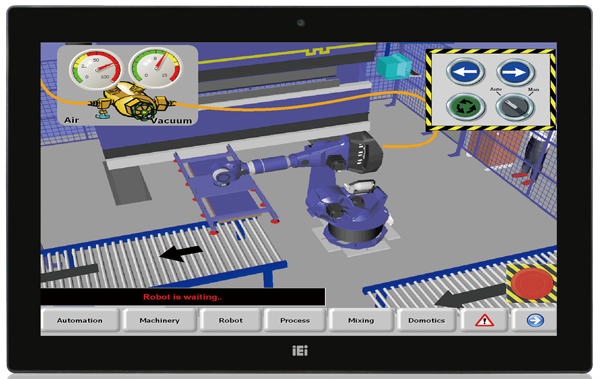

» W15” light industrial interactive panel PC
» 9 V ~ 30 V wide range DC power input
» Selectable AT/ATX power mode
» Built-in speakers
» One mSATA slot
» IP64 compliant front panel
» IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Hardware Spec.

Communication
Wi-Fi IEEE 802.11a/b/g/n/ac
Dimensions
Dimensions 396 x 250 x 53
Environment
Operating Temperature -20°C~50°C
Storage Temperature -20°C~60°C
I/O Interface
I/O Ports and Switches 1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port
(DB-9 connector) (RI/5V/12V)
2 x USB 2.0
2 x USB 3.0
2 x GbE LAN
1 x Power switch
RAM One 204-pin 1333MHz single-channel DDR3L
SDRAM,2GB pre-installed (system max. 8GB)
LCD
Backlight MTBF 50000 (LED backlight panel)
Brightness (cd/m2) 400
Contrast Ratio 500:1
LCD Color 16.2M
Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
Resolution 1366 x 768
Size 15.6"
Viewing Angle (H-V) 170°/160°
Other Features
Camera 2-megapixel with low light function
Microphone digital microphone
Power
Power Requirement 9~30 VDC
Storage
Storage mSATA , 2.5” SATA 3Gb/s HDD bay
System
Chipset N/A
CPU Intel® Celeron® J1900 (quad core, 2 GHz)
Touch
Touch Controller PenMount DMC9000/ EETI EXC7200
Touch Screen 5-wire resistive type with RS-232 interface / projected capacitive type with USB interface
Weight
Weight 3.3Kg
I/O Interface
I/O Interface 1 x Power Switch
2 x LAN(GbE LAN)
2 x USB 3.0
1 x Audio((line-out))
1 x AT/ATX switch
1 x Reset Button
1 x RS-232((RJ-45 connector))
1 x RS-422/485(COM port(DB-9 connector) (RI/5V/12V))
2 x USB 2.0
1 x DC Input Jack(9-30V lockable power jack)

Ordering Information

AFL3-W15A-BT-J1/R/4G-R15 Wide 15.6” 400 cd/m² 1366x768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch window, 4GB DDR3L RAM , with AG, R15
AFL3-W15A-BT-J1/PC/4G-R15 Wide 15.6” 400 cd/m² 1366x768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 4GB DDR3L RAM , with AG, R15
AFL3-W15A-BT-J1/PC/2G-R15 Wide 15.6” 400 cd/m² 1366x768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R15

Package Contents

Package Content
  • 10 x Screw Pack M2

  • 1 x Power Adpater

  • 1 x Touch Pen

  • 1 x RJ45 to RS-232 Transfer Cable
