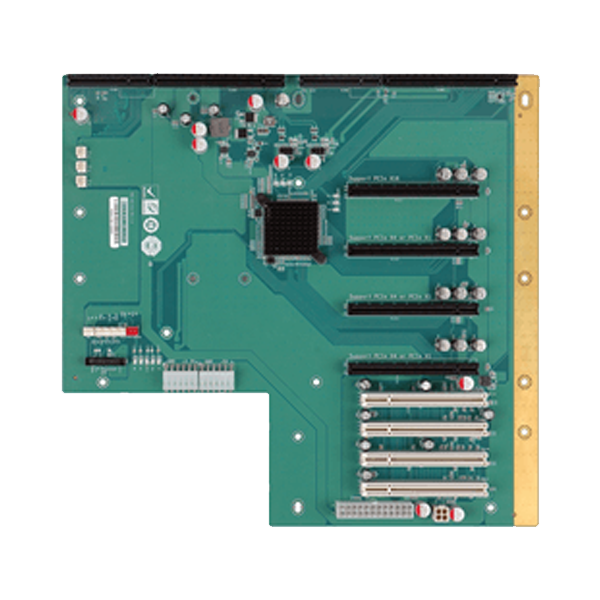

PXE-9S2

9-slot PICMG 1.3 backplane, one PCIe x16 with x16 slot, 3 PCIe x4 with x16 slots, four PCI slots RoHS

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Chassis
      Chassis RACK-305G
      RACK-360G
      RACK-3000G
      Expansion Slots
      PCI Slot 4
      PCIe x 16 1
      PCIe x 4 3
      PSU Type
      PSU Type 24+4pin ATX
      Total Slot
      Total Slot 9
      USB Connectors by Pin
      USB Connectors by Pin 4

    • Ordering Info.

      Item No. Description
      PXE-9S2-R10 9-Slot PICMG 1.3 Backplane, 1 PCIe x16 w/ x16 slots, 3 PCIe x4 w/ x16 slots, 4 PCI, RoHS (Mounting holes compatible with PCI-14S)
      RACK-305GB-R22 4U 14-Slot Rackmount Chassis,Black,AT Power Switch,W/O PSU,RoHS
      RACK-305GW-R22 4U 14-Slot Rackmount Chassis,White,AT Power Switch,W/O PSU,RoHS
      RACK-3000GB-R21 4U 14-Slot Rackmount Chassis,Black,ATX Power Switch,W/O PSU,RoHS
      RACK-3000GW-R21 4U 14-Slot Rackmount Chassis,White,ATX Power Switch,W/O PSU,RoHS
      RACK-360GB-R22 4U 14-Slot Rackmount Chassis,FP With USB,Black,AT Power Switch,W/O PSU,RoHS
      RACK-360GW-R22 4U 14-Slot Rackmount Chassis,FP With USB,White,AT Power Switch,W/O PSU,RoHS
