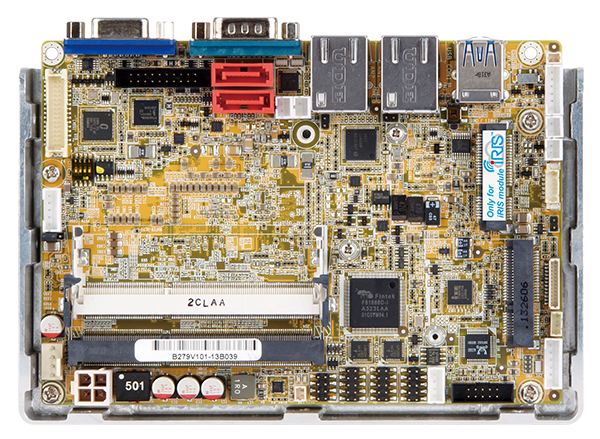

WAFER-ULT-i1

3.5” SBC supports Intel® 22nm 4th/ 14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT), VGA/LVDS/iDP, Dual GbE, PCIe Mini, USB 3.0, SATA 6Gb/s Audio, iRIS-1010 and RoHS

  • Overview

    ● 3.5 form fator with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L DIMMs
    ● 12V only single voltage design with AT/ATX mode support
    ● 18/24-bit dual-channel LVDS support
    ● Support triple independent display via LVDS, VGA and iDP
    ● Support PCIe Mini card slot for mSATA, 3G card, wireless card and DOM
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      DisplayTriple independent display
      VGA (up to 2560x1600@60 Hz)
      18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
      iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x Full-size PCIe Mini card slot (mSATA support)
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      1 x Analog audio (2x5 pin)
      Digital I/O1 x 8-bit digital I/O (2x5 pin)
      EthernetLAN1: Intel® I218LM PHY with Intel® AMT 9.0 support
      LAN2: Intel® I210-AT PCIe controller with NCSI support
      I/O Interface
      I/O Interface2 x USB 2.0
      2 x RS-232
      1 x RS-422/485
      1 x KB/MS
      Option
      iRIS1 x iRIS-1010 slot
      Power
      Power consumption12V@2.72A (Intel® Core™ i5-4300U CPU with two 8 GB 1600 MHz DDR3 memory)
      Storage
      Storage2 x SATA 6Gb/s with 5V power connector (RAID 0, 1)
      System
      CPU» 5th generation Intel® mobile ULT on-board SoC
      Intel® Core™ i7-5650U (2.2GHz, dual-core, 4MB cache, TDP=15W)
      Intel® Core™ i5-5350U (1.8GHz, dual-core, 3MB cache, TDP=15W)
      Intel® Core™ i3-5010U (2.1GHz, dual-core, 3MB cache, TDP=15W)
      Intel® Celeron® processor 3765U (1.9GHz, dual-core, 2MB cache, TDP=15W)
      » 4th generation Intel® mobile ULT on-board SoC
      Intel® Core™ i7-4650U (1.7GHz, dual-core, 4MB cache, TDP=15W)
      Intel® Core™ i5-4300U (1.9GHz, dual-core, 3MB cache, TDP=15W)
      Intel® Core™ i3-4010U (1.7GHz, dual-core, 3MB cache, TDP=15W)
      Intel® Celeron® processor 2980U (1.6GHz, dual-core, 2MB cache, TDP=15W)
      Memory Max.Two 204-pin 1600/1333 MHz dual-channel DDR3L SDRAM SO-DIMM slots support up to 16 GB
    • Ordering Info.

      Item No. Description
      WAFER-ULT-i1-i7-R113.5" SBC with Intel 22nm 4th Gen ULT Mobile Core i7-4650U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS
      WAFER-ULT-i1-C-R113.5" SBC with Intel 22nm 4th Gen ULT Mobile Celeron 2980U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS
      WAFER-ULT-i1-i3-R113.5" SBC with Intel 22nm 4th Gen ULT Mobile Core i3-4010U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS
      WAFER-ULT-i1-i5-R113.5" SBC with Intel 22nm 4th Gen ULT Mobile Core i5-4300U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS
    • Package Contents

      • 1 x WAFER-ULT/ULT2 single board computer with heatsink enclosure

      • 1 x Audio cable

      • 1 x Dual-port USB 2.0 cable

      • 1 x One Key Recovery CD

      • 1 x Power cable

      • 1 x QIG

      • 2 x SATA with 5V output cable kit

      • 1 x Utility CD
