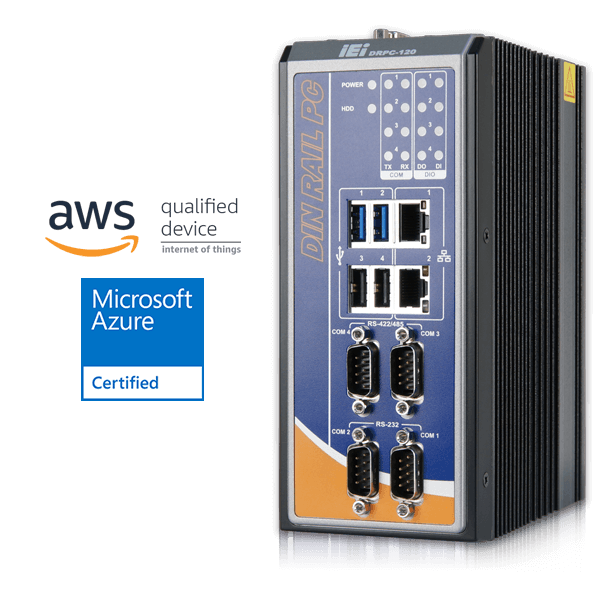

DRPC-120-BT

Fanless DIN-Rail Embedded System,Intel® E3845 1.91GHz Solution

● Intel® Atom™ E3845 1.91GHz

● 1 x 2.5' SATA HDD/SSD drive bay

● DDR3L 1.35V SO-DIMM support

● Programmable OLED display

● 8-bit digital I/O (4-bit inputs/outputs)

● IEI iRIS-2400 solution

Spec Item	Description
Form factor
SBC Form Factor	CPU: Intel® Atom™ E3845 1.91 GHz Chipset:SoC System Memory: One 2 GB 204-pin DDR3L SO-DIMM pre-installed (system max: 8 GB)
I/O Interface
I/O Ports	2 x USB 3.0 2 x USB 2.0 Ethernet: 2 x RJ-45 1 x PCIe GbE by Intel® I210 controller 1 x PCIe GbE by Intel® I211 controller COM Port: 2 x DB-9 w/3KV isolation protection 2 x DB-9 w/3KV isolation protection 8-bit digital I/O, 4-bit input/4-bit output 1 x VGA, 1 x HDMI 802.1 b/g/n 2T2R (optional)
Expansion Slots
Expansion Slots	1 x Half-size PCIe Mini slot (w/o USB signal) 1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
System
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5〞 SATA 6Gb/s HDD/SSD Bay
Indicator&Buttons
Indicators	Power/HDD/Com port/DIO
Color
Color	Black
Dimensions
Dimensions	74.08 x 140 x 171.5
Weight
Weight	1.4 kg/2.5 kg
Environment
Operating Temperature	-20°C ~ 60°C with air flow (SSD)
Humidity	5% ~ 95%, non-condensing

Spec Item

Description

Form factor

SBC Form Factor

CPU:
Intel® Atom™ E3845 1.91 GHz
Chipset:SoC
System Memory:
One 2 GB 204-pin DDR3L SO-DIMM pre-installed
(system max: 8 GB)

I/O Interface

I/O Ports

2 x USB 3.0
2 x USB 2.0
Ethernet:
2 x RJ-45
1 x PCIe GbE by Intel® I210 controller
1 x PCIe GbE by Intel® I211 controller
COM Port:
2 x DB-9 w/3KV isolation protection
2 x DB-9 w/3KV isolation protection
8-bit digital I/O, 4-bit input/4-bit output
1 x VGA, 1 x HDMI
802.1 b/g/n 2T2R (optional)

Expansion Slots

1 x Half-size PCIe Mini slot (w/o USB signal)
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)

System

Cooling method / System Fan

Fanless

Drive Bays

1 x 2.5〞 SATA 6Gb/s HDD/SSD Bay

Indicator&Buttons

Indicators

Power/HDD/Com port/DIO

Color

Black

Dimensions

74.08 x 140 x 171.5

Weight

1.4 kg/2.5 kg

Environment

Operating Temperature

-20°C ~ 60°C with air flow (SSD)

Humidity

5% ~ 95%, non-condensing

Item No.	Description
DRPC-120-BTi-E5-LED/2G-R10	Fanless embedded system, Intel® Bay-Trail E3845 1.91 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x VGA, 1 x HDMI, 8 CH DIO, iRIS-2400 optional,9 V~30 V DC, LED indicators, RoHs
DRPC-120-BTi-E5-OLED/2G-R10	Fanless embedded system, Intel® Bay-Trail E3845 1.91 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x VGA, 1 x HDMI, 8 CH DIO, iRIS-2400 optional,9 V~30 V DC, OLED indicators, RoHs

Item No.

Description

DRPC-120-BTi-E5-LED/2G-R10

Fanless embedded system, Intel® Bay-Trail E3845 1.91 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x VGA, 1 x HDMI, 8 CH DIO, iRIS-2400 optional,9 V~30 V DC, LED indicators, RoHs

DRPC-120-BTi-E5-OLED/2G-R10

Fanless embedded system, Intel® Bay-Trail E3845 1.91 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x VGA, 1 x HDMI, 8 CH DIO, iRIS-2400 optional,9 V~30 V DC, OLED indicators, RoHs
