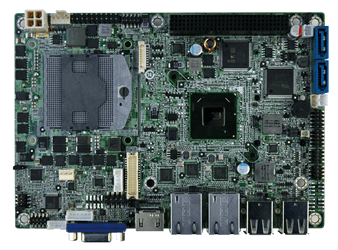

NANO-HM650

EPIC SBC Supports Socket G2 for 2nd Generation Intel® Core™ i7/i5/i3 and Celeron® CPU

  • Overview

    ● EPIC SBC with Socket G2 for Intel® 2nd generation Core™ i7/i5/i3 and Celeron® processor
    ● VGA/24-bit dual-channel LVDS/HDMI for dual display support
    ● 1066/1333HMz DDR3 SDRAM supported (system max. 8 GB)
    ● Supports three COM, eight USB 2.0, two SATA 6Gb/s, PCI-104 and audio
    ● TPM V1.2 hardware security function supported by TPM module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      DisplayDual display supported
      VGA (up to 2048x1536@75Hz)
      HDMI (up to 1920x1200@60Hz)
      18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x Full-size PCIe Mini card slot
      1 x PCI-104 slot (PCI signal)
      Form factor
      Form factorEPIC
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      Digital I/O8-bit digital I/O (4-bit input / 4-bit output)
      EthernetDual LAN: Realtek RTL8111E PCIe GbE
      controller with ASF 2.0 support
      I/O Interface
      I/O Interface4 x USB 2.0
      4 x Internal USB 2.0
      2 x Internal RS-232
      1 x Internal RS-422/485
      Power
      Power consumption12V@4.85A (2.6GHz Intel® Core i5-2540M with 1333 MHz 4 GB DDR3 memory)
      Storage
      Storage2 x SATA 6Gb/s with 5V SATA power connector
      System
      ChipsetIntel® HM65
      CPU SocketSocket G2 for 2nd generation Intel® Core™ i7/i5/i3 and Celeron® mobile processor
      Memory Max.One 204-pin 1066/1333 MHz DDR3 SDRAM SO-DIMM slot supports up to 8 GB
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      NANO-HM650-R11EPIC SBC supports Socket G2 supports Intel® mobile Core™ i7/i5/i3 CPU, VGA/HDMI, Dual PCIe GbE, USB2.0, Mini PCIe, SATAIII , PCI-104 and Audio,RoHS
    • Package Contents

      • 1 x NANO-HM650 single board computer

      • 1 x Audio cable

      • 1 x Mini jumper pack

      • 1 x Power cable

      • 1 x One Key Recovery CD

      • 2 x RS-232 cable

      • 1 x QIG (Quick Installation Guide)

      • 2 x SATA with power cable

      • 1 x Utility CD
