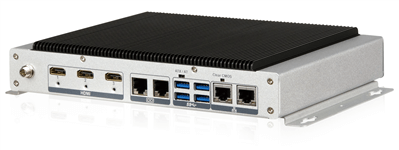

IDS-300-BW

Digital Signage System

End of Life

End of Life Notice

Effective Date: 2019/03/18

» Fanless system with Intel® Celeron® N3160 processor
» Three HDMI ports
» Two full-size PCIe Mini slots for expansion
» Four USB 3.0 ports
» Two GbE LAN ports

Hardware Spec.

Form factor
SBC Form Factor CPU:Intel® Celeron® N3160
(up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Chipset:SoC
System Memory:
1 x 1600/1333 MHz DDR3L SO-DIMM,4 GB pre-installed (support up to 8GB)
I/O Interface
I/O Ports 4 x USB 3.0
Ethernet:2 X RJ-45 PCIe GbE by RTL8111E controller
RS-232:2 x RJ-45 RS-232
Button:1 x Power button
Display:3 x HDMI
Resolution:
HDMI 1: up to 2560x1600 @ 60Hz
HDMI 2&3: up to 3840x2160 @ 30Hz
Wireless:1 x 802.11b/g/n (optional)
Expansion Slots
Expansion Slots PCIe Mini:2 x Full-size PCIe Mini slot (one co-lay mSATA)
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5' SATA 6Gb/s HDD/SSD Bay
Color
Color Silver
Dimensions
Dimensions 241 x 160 x 39
Weight
Weight 1.8 kg/ 3kg
Environment
Operating Temperature -20°C ~60°C with air flow (SSD)
Humidity 10% ~ 95%, non-condensing

Ordering Information

IDS-300-BW-N3/4G-R10 Fanless embedded system with Intel® Celeron N3150 1.6GHz, (up to 2.08 GHz, Quad Core, TDP 6W), 4GB DDR3L pre-installed memory, 12V DC, triple HDMI display, RoHS

Package Contents

Package Content
  • 1 x Power Adapter

  • 1 x Mounting Bracket
