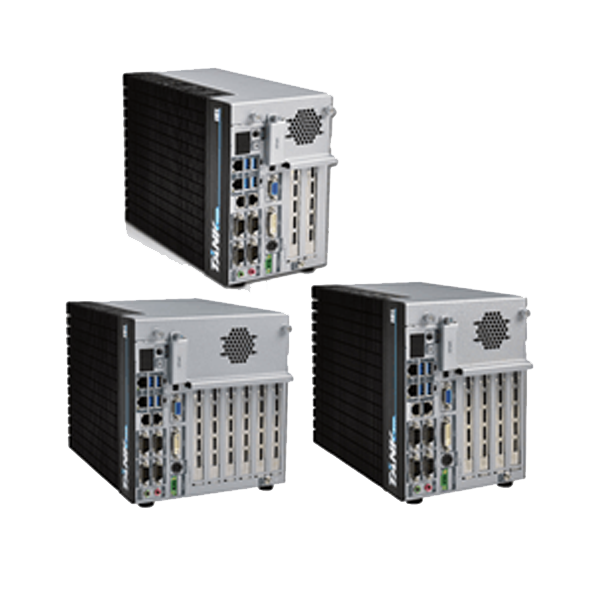

TANK-860-HM86

Intel® HM86 mobile solution. Fanless wide temperature embedded system

  • Overview

    ● Intel® HM86 chipset + 4th generation Intel® Core™ CPU
    ● Great flexibility of expansion slots
    2-slot model: 2 x PCIe by 16, 1 x PCIe Mini slot
    4-slot model: 2 x PCIe by 16, 2 x PCI, 2 x PCIe Mini slot
    6-slot model: 1 x PCIe by 16, 2 x PCIe by 4, 3 x PCI, 2 x PCIe Mini slot
    ● IPMI function for remote control management
    ● Three indpendent video outputs support high resolution
    ● 2 x 2.5" SATA HDD bay design fulfills high storage demand
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor CPU:
      Intel® Core™ i5-4400E 2.7 GHz
      Intel® Celeron® 2000E 2.2 GHz
      Chipset:Intel® HM86
      System Memory
      2 x 204-pin DDR3 SO-DIMM slot.
      Pre-installed one 4 GB SO-DIMM(system max: 16 GB)
      I/O Interface
      I/O Ports 4 x USB 3.0
      2 x USB 2.0
      Ethernet:
      2 x RJ-45
      1 x PCIe GbE by Intel® I210
      1 x PCIe GbE by Intel® I217LM
      COM Port:
      4 x RS-232 (DB-9, two with isolation)
      2 x RS-422/485 (RJ-45)
      Digital I/O:8-bit digital I/O, 4-bit input/4-bit output
      Display:
      1 x VGA, 1 x DVI-I, 1 x DisplayPort
      Resolution
      VGA: Up to 1920 x 1200@60Hz
      DVI-I: Up to 2500 x 1600@60Hz
      Displayport: Up to 2500 x 1600@60Hz
      Audio:
      1 x Line-out, 1 x Mic-in
      Wireless 1 x 802.11b/g/n (optional)
      Expansion Slots
      Expansion Slots PCI/PCIe
      2 A: Two PCIe x8 (physical PCIe x16 slot)
      4 A: Two PCIe x8 (physical PCIe x16 slot) +2 x PCI
      6 A: One PCIe x8 (physical PCIe x16 slot) +two PCIe x4 + three PCI
      PCIe Mini
      2A: 1 x Full-size (co-lay mSATA)
      4A: 1 x Full-size (co-lay mSATA) +1 x Full-size (on backplane)
      6A: 1 x Full-size (co-lay mSATA) +1 x Full-size (on backplane)
      System
      Cooling method / System Fan Fanless
      Drive Bays 2 x 2.5"" SATA 6Gb/s HDD/SSD bay
      Color
      Color Black C + Silver
      Dimensions
      Dimensions 2 slot: 121.5 x 255.2 x 205
      4 slot: 154.8 x 255.2 x 205
      6 slot: 195.4 x 255.2 x 205
      Environment
      Operating Temperature -20°C ~ 60°C with air flow (SSD)
      Humidity 5% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      TANK-860-HM86i-C/4G/4A-R10 Ruggedized Fanless embedded system , Intel Celeron dual-core 2000E 2.2GHz, TDP 37W, 4GB DDR3 pre-installed memory , 2 x PCIe by 8 / 2 x PCI expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10
      TANK-860-HM86i-i5/4G/2A-R10 Ruggedized Fanless embedded system , Intel Core i5 dual-core i5-4400E 2.7GHz, TDP 37W, 4GB DDR3 pre-installed memory , 2 x PCIe by 8 expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10
      TANK-860-HM86i-C/4G/6A-R10 Ruggedized Fanless embedded system , Intel Celeron dual-core 2000E 2.2GHz, TDP 37W, 4GB DDR3 pre-installed memory , 1 x PCIe by 8 / 2 x PCIe by 4 / 3 x PCI expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10
      TANK-860-HM86i-i5/4G/6A-R10 Ruggedized Fanless embedded system , Intel Core i5 dual-core i5-4400E 2.7GHz, TDP 37W, 4GB DDR3 pre-installed memory , 1 x PCIe by 8 / 2 x PCIe by 4 / 3 x PCI expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10
      TANK-860-HM86i-C/4G/2A-R10 Ruggedized Fanless embedded system , Intel Celeron dual-core 2000E 2.2GHz, TDP 37W, 4GB DDR3 pre-installed memory , 2 x PCIe by 8 expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10
      TANK-860-HM86i-i5/4G/4A-R10 Ruggedized Fanless embedded system , Intel Core i5 dual-core i5-4400E 2.7GHz, TDP 37W, 4GB DDR3 pre-installed memory , 2 x PCIe by 8 / 2 x PCI expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10
    • Package Contents

      • 1 x Chassis Screw

      • 1 x Mounting Bracket
