SPCIE-C2160

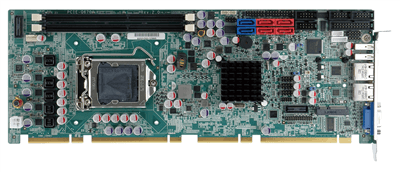

Full-size PICMG 1.3 CPU Card supports LGA 1155 Intel® Xeon® E3/Core™ i3/Pentium®/Celeron® CPU

  • Overview

    ● Full-size PICMG 1.3 server grade solution
    ● LGA 1155 Intel® Xeon® E3/Core™ i3/Pentium®/Celeron® processors supported
    ● Up to 16 GB 1600 MHz dual-channel DDR3 SDRAM
    ● Supports dual independent display by VGA and DVI-D (DVI model)
    ● Supports PCIe Mini expansion
    ● Intel® PCIe GbE with Intel® AMT 8.0 support
    ● Supports RAID function via SATA 6Gb/s and SATA 3Gb/s
    ● High-speed I/O interface provided through the 3rd gen PCIe add-on card and SATA 6Gb/s connectors
    ● TPM V1.2 hardware security provided by the TPM module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions338 mm x 126 mm
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      Storage Temperature-20°C ~ 70°C
      I/O Interface
      Digital I/O8-bit digital I/O
      Display1 x VGA
      1 x DVI-D (via header to IO-KIT-001-R20
      ExpansionPCIe signal and PCI signal via golden finger
      I/O Interface
      I/O Interface8 x USB 2.0
      1 x RS-422/485
      1 x KB/MS
      4 x RS-232
      1 x LPT
      2 x Ethernet(LAN1: Intel® 82574L PCIe controller
      LAN2: Intel® 82579 PHY with Intel® AMT 8.0)
      1 x I2C(1 x 4-pin wafer)
      Power
      Power consumption5V@3.98A, 12V@0.38A,Vcore_12V@7.81A, 3.3V@1.61A,5VSB@0.15A (3.4GHz Intel® Xeon®
      2.2GHz with two 2 GB 1333 MHz DDR3 memory)
      Power SupplyAT/ATX power supply supported
      System
      ChipsetIntel® C216
      CPULGA 1155 socket supports LGA 1155 Intel®Xeon® E3/Core™ i3/Pentium®/Celeron®processor
      Memory Max.Two 240-pin 1600/1333 MHz dual-channel ECC and non-ECC unbuffered DDR3 SDRAM DIMMs supported (system max.16 GB)
      Weight
      Weight1200g/NW: 420g
    • Ordering Info.

      Item No. Description
      SPCIE-C2160-DVI-R10Full-size PICMG 1.3 CPU Card supports LGA1155 Intel Xeon E3/Core i3/Pentium and Celeron C216,DDR3,VGA/DVI-D,Dual Intel PCIe GbE,SATA 6Gb/s,mini PCIe,HD Audio RoHS
      SPCIE-C2160-R10Full-size PICMG 1.3 CPU Card supports LGA1155 Intel Xeon E3/Core i3/Pentium and Celeron C216,DDR3,VGA,Dual Intel PCIe GbE,SATA 6Gb/s,mini PCIe,HD Audio RoHS
    • Package Contents

      • 1 x SPCIE-C2160 single board computer

      • 1 x One Key Recovery CD

      • 1 x Dual RS-232 cable

      • 1 x Mini jumper pack

      • 1 x USB cable

      • 1 x QIG (Quick Installation Guide)

      • 4 x SATA cable

      • 1 x Utility CD
