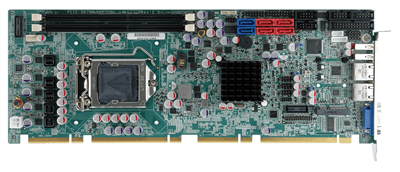

SPCIE-C2060

Full-size PICMG 1.3 CPU Card supports LGA 1155 Intel® Xeon® E3/Core™ i3/Pentium®/Celeron® CPU with Intel® C206,

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» Full-size PICMG 1.3 server grade solution
» LGA 1155 Intel® Xeon® E3/Core™ i3/Pentium®/Celeron® processors supported
» Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM
» Supports dual independent display by VGA and DVI-D (DVI model)
» Supports PCIe Mini expansion
» Intel® PCIe GbE with Intel® AMT 7.0 support
» Supports RAID function via SATA 6Gb/s and SATA 3Gb/s
» High-speed I/O interface provided through the 2nd gen PCIe add-on card and SATA 6Gb/s connectors
» TPM V1.2 hardware security provided by the TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System CPU
Chipset Intel® C206
Memory Max. Two 240-pin 1066/1333 MHz dual-channel ECC
and non-ECC unbuffered DDR3 SDRAM DIMMs
supported (system max.16 GB)
I/O Interface Digital I/O
Expansion PCIe signal and PCI signal via golden finger
1 x PCIe Mini slot (with USB 1.1/2.0 signal)
Display Port 1 x VGA
1 x DVI-D (via header to IO-KIT-001-R20 DVI-D/USB module) (optional)
Power Power consumption
Power Supply AT/ATX power supply supported
Environment Operating Temperature
Humidity 5% ~ 95%, non-condensing
Storage Temperature -20°C ~ 70°C
Dimensions Dimensions
Weight Weight
I/O Interface I/O Interface
1 x RS-422/485
8 x USB 2.0
1 x KB/MS
2 x Ethernet(LAN1: Intel® 82574L PCIe controller
LAN2: Intel® 82579 PHY with Intel® AMT 7.0 support)
1 x I²C(1 x 4-pin wafer)

Ordering Information

SPCIE-C2060-R21 Full-size PICMG 1.3 CPU Card supports LGA1155 Intel Xeon E3/Core i3/Pentium and Celeron C206,DDR3,VGA,Dual Intel PCIe GbE,SATA 6Gb/s,mini PCIe,HD Audio,four RS-232 RoHS
SPCIE-C2060-DVI-R21 Full-size PICMG 1.3 CPU Card supports LGA1155 Intel Xeon E3/Core i3/Pentium and Celeron C206,DDR3,VGA/DVI,Dual Intel PCIe GbE,SATA 6Gb/s,mini PCIe,HD Audio,four RS-232 RoHS
