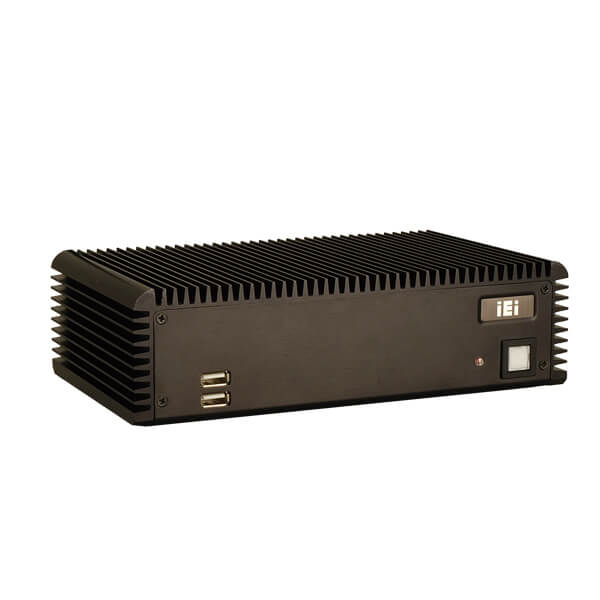

ECW-281B-D2550

Fanless Embedded System with Intel® Atom™ Dual-core D2550 CPU

  • Overview

    ● Fanless system with Intel® Atom™ D2550 dual-core 1.86 GHz CPU
    ● Supports 4 COM ports (3 x RS-232, 1 x RS-422/485)
    ● 2 PCIe Mini slots (1 x Full-size, 1 x Half-size)
    ● 12V DC and 9 V~36 V DC model available
    ● 2T2R 802.11b/g/n wireless model available
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor CPU:Intel® Atom™ dual-core D2550 1.86GHz
      Chipset:Intel® NM10
      System Memory:2GB DDR3 204-pin SO-DIMM memory pre-installed

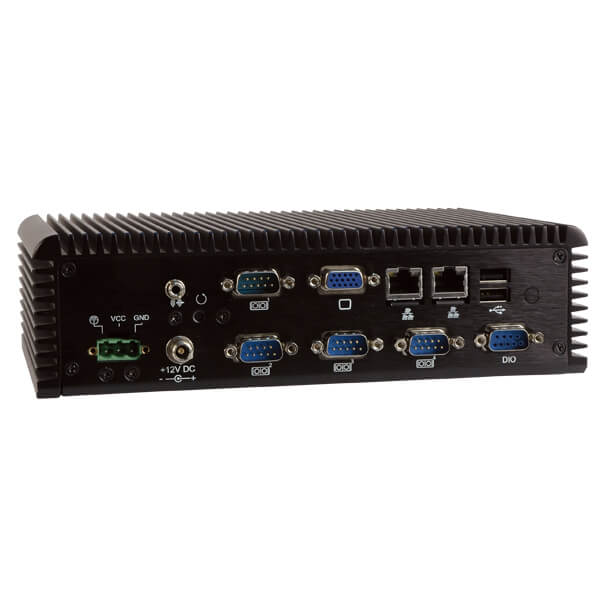

      I/O Interface
      I/O Ports 4 x USB 2.0
      Ethernet:2 x Realtek RTL8111E PCIe GbE controller
      COM Port:
      3 x RS-232
      1 x RS-422/485
      Digital I/O:8-bit digital I/O
      Display:1 x VGA
      Resolutio: VGA: Up to 1920 x 1200@60Hz
      Audio:1 x Line-out
      Wireless:1 x 802.11b/g/n (optional)
      Expansion Slots
      Expansion Slots 1 x Full-size (supports mSATA)
      1 x Half-size
      System
      Cooling method / System Fan Fanless
      Drive Bays 1 x 2.5' SATA HDD bay
      Color
      Color Black
      Dimensions
      Dimensions 229 x 64 x 132
      Weight
      Weight 2.1 kg / 3.9 kg
      Environment
      Operating Temperature -10°C~50°C with air flow (SSD)
      Humidity 5% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      ECW-281B-R11/D2550/2GBFanless embedded system with WAFER-CV-D25501,with dual core Intel ATOM D2550 1.86G, 4 serial ports,with 2GB DDR3 pre-installed SO-DIMM memory,12VDC in,60W power adapter , black, RoHS
      ECW-281BWD-R10/D2550/2GBFanless embedded system with WAFER-CV-D25501,with dual core Intel ATOM D2550 1.86G, 4 serial ports,with 2GB DDR3 pre-installed SO-DIMM memory,9~36VDC in, black, RoHS
    • Package Contents

      • 1 x Power cord only for 12V

      • 1 x HDD thermal pad

      • 1 x 12V 60W power adapter only for 12V

      • 1 x Screw set

      • 1 x Wall mount bracket
