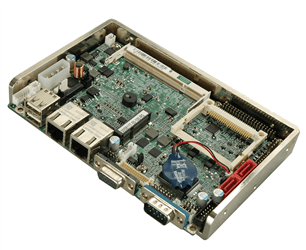

WAFER-945GSE

3.5” SBC with Intel® Atom™ Processor

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» Intel® Atom™ processor N270 1.6 GHz CPU for ultra low voltage fanless support
» Support dual display for VGA+LVDS
» System memory supports up to 2 GB 533 MHz DDR2
» Support six COM, six USB 2.0, two SATA and CF Type II socket
» Thermal design for easy assembly
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display Display
System CPU
Chipset Intel® 945GSE/IntelR 82801 GBM/ICH7M
Memory Max. One 200-pin 400/533 MHz DDR2 SDRAM SODIMM slot
supports up to 2 GB
CPU Socket
I/O Interface Ethernet
Digital I/O 1 x 8-bit digital I/O (2x5 pin)
Audio Realtek ALC662 with HD Audio codec
I/O Interface
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95% non-condensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
FSB FSB
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
4 x Internal USB 2.0
1 x RS-232
2 x USB 2.0

Ordering Information

WAFER-945GSE-N270-R20 3.5" SBC with Intel Atom N270 processor,VGA/LVDS/Dual PCIe GbE,CF type II,SATA,RoHS
WAFER-945GSE-N270W-R20 3.5" SBC with Intel Atom N270 processor,VGA/LVDS/Dual PCIe GbE,CF type II,-20~70℃,RoHS
