PM-LX

PCI-104 Module with on-board AMD Geode™ LX 800 CPU

  • Overview

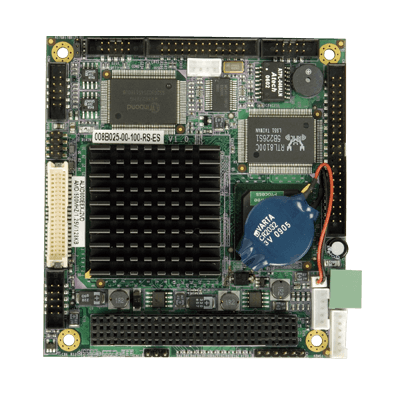

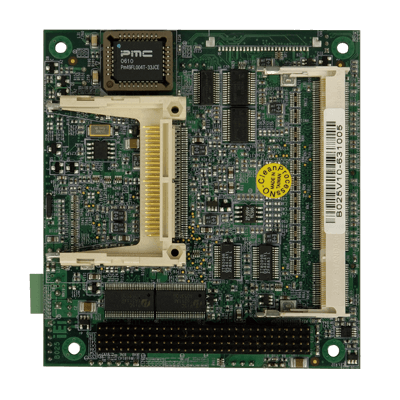

    PCI-104 Module with on-board AMD Geode™ LX 800 CPU
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUAMD Geode™ LX 800 (500 MHz) processor
      ChipsetAMD CS5536
      MemoryOne 200-pin 400 MHz DDR SDRAM SODIMM
      Memory Max.1GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)95 X 95
      Net Weight110
      Storage
      StorageDescription: 1 x IDE (2x22 pin, P=2.0)
      1 x CF Type II Card
      I/O Interface
      Display Output1 x VGA :up to 1920x1440@60Hz
      1 x TTL :24-bit single-channel (up to 1600x1200@60Hz)
      EthernetDescription: 10/100Mbps realtek RTL8100C Ethernet chipset
      I/O Interface2 x Internal RS-232 :2x5 pin, P=2.0
      1 x Internal RS-422/485
      2 x Internal USB 2.0 :2x4 pin, P=2.0
      1 x PS/2 :1x6 pin
      1 x LPT :2x13 pin, p=2.0
      Expansion1 x PC/104
      Power
      Power Consumption5V@1.13A (AMD Geode™ LX 800 with 1 GB 400 MHz DDR memory)
      Power Supply5V only DC input
      1 x Internal power connector (1x2 pin)
      Support AT mode
      Environment
      Operating Temperature0°C ~ 60°C
      Storage Temperature-10°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      PM-LX-800-R11 PC-104 SBC with AMD LX800 Processor,VGA/TTL, LAN, USB2.0 CF TypeII,ROHS
    • Package Contents

      • 1 x PM-LX single board computer

      • 1 x ATA33 flat cable

      • 1 x LAN cable

      • 1 x KB/MS Y cable

      • 1 x Power cable

      • 1 x Mini jumper pack

      • 1 x USB cable

      • 1 x VGA cable

      • 1 x QIG

      • 2 x RS-232 cable
