PICOe-B650

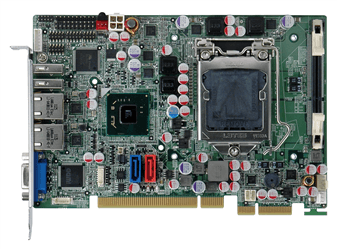

Half-size PCIe CPU Card supports LGA 1155 32nm Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® B65

  • Overview

    ● Half-size PCIe CPU card with LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    ● One 1333/1066 MHz DDR3/DDR3L (1.35V) SDRAM SO-DIMM supports up to 8 GB
    ● On-board embedded controller supports infrared and PECI 2.0 technologies
    ● One SATA 6Gb/s and dual Realtek PCIe GbE
    ● TPM V1.2 hardware security provided by the TPM module
    ● IEI One Key Recovery solution allows you to create raipd OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-1156A-RS-R11
      CF-1156C-RS
      CF-1156D-RS
      Environment
      Humidity10% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      Expansion Slots
      Expansion SlotsPCIe signal and PCI signal via golden finger
      I/O Interface
      AudioSupports 7.1 channel HD audio by IEI AC-KIT-892HD-R10 kit
      Digital I/O8-bit digital I/O (4-bit input, 4-bit output)
      Display1 x VGA (up to 2048 x 1536 @75Hz)
      EthernetLAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support
      LAN2: Realtek RTL8111E PCIe GbE controller
      I/O Interface
      I/O Interface2 x USB 2.0
      2 x Internal USB 2.0
      1 x I2C
      2 x Internal RS-232
      1 x KB/MS
      1 x SMBus
      Power
      Power consumption5V@3.17A, 12V@0.46A, Vcore_12V@7.26A, 5VSB@0.18A
      (3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory)
      Storage
      Storage1 x SATA 3Gb/s
      1 x SATA 6Gb/s
      System
      ChipsetIntel® B65
      CPUIntel® Core™ i7/i5/i3/Pentium®/Celeron® processor
      CPU SocketLGA1155
      Memory Max.One 204-pin 1333/1066MHz DDR3 & DDR3L (1.35V) SO-DIMM supported
      (system max. 8GB)
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      PICOe-B650-R10Half-size PCIe CPU card supports 32nm LGA1155 Intel Core i7/i5/i3 CPU per Intel B65,DDR3,VGA,Dual Realtek PCIe GbE,USB 2.0,SATA 6Gb/s,HD Audio and RoHS
    • Package Contents

      • 1 x PICOe-B650 single board computer

      • 1 x Dual RS-232 cable with bracket (P/N: 19800-000112-RS)

      • 1 x USB cable (P/N: CB-USB02A-RS) 1 x Mini jumper pack

      • 2 x SATA cable (P/N: 32000-062800-RS) 1 x QIG (Quick Installation Guide)

      • 1 x One Key Recovery CD

      • 1 x Utility CD
