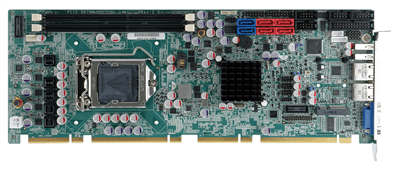

PCIE-Q670

Full-size PICMG 1.3 CPU Card supports LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q67

  • Overview

    ● PICMG 1.3 full-size graphics grade solution
    ● LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processors supported
    ● Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM
    ● Supports dual independent display by VGA and DVI-D (DVI model)
    ● Supports PCIe Mini expansion
    ● Intel® PCIe GbE with Intel® AMT 7.0 support
    ● Supports SATA 6Gb/s
    ● Supports RAID function via SATA 6Gb/s and SATA 3Gb/s
    ● TPM v1.2 hardware security provided by the TPM module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-1156A-RS-R11
      CF-1156C-RS
      CF-1156D-RS
      CF-1156E-R11
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 60°C
      Expansion Slots
      Expansion SlotsPCIe Mini slot
      I/O Interface
      AudioSupports by IEI AC-KIT-
      892HD-R10 audio kit
      Digital I/O8-bit Digital I/O
      Display1 x VGA
      1 x DVI-D (via header to IO-KIT-
      001-R20 DVI-D/USB module)
      (optional)
      EthernetLAN1: Intel® 82583V PCIe
      controller
      LAN2: Intel® 82579 PHY with
      Intel® AMT 7.0 support
      I/O Interface
      I/O Interface1 x SMBus
      2 x USB 2.0
      1 x LPT
      1 x KB/MS
      6 x Internal USB 2.0
      4 x Internal RS-232/422/485
      1 x VGA
      1 x Internal RS-422/485
      Power
      Power consumption5V@3.98A, 12V@0.38A,
      Vcore_12V@7.81A,
      3.3V@1.61A, 5VSB@0.15A
      (3.4GHz Intel® Core™ i7-
      2600K with two 2GB 1333MHz
      DDR3 memory)
      Storage
      Storage4 x SATA 3Gb/s
      2 x SATA 6Gb/s
      with RAID 0/1/5/10 support
      System
      ChipsetIntel® Q67
      CPUIntel® Core™ i7/i5/i3,
      PentiumR, Celeron® processor
      CPU SocketLGA1155
      Memory Max.Two 240-pin 1066/1333MHz
      dual-channel DDR3 SDRAM
      DIMMs (system max. 16GB)
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      PCIE-Q670-R20Full-size PICMG 1.3 CPU Card supports LGA1155 Intel Core i7/i5/i3/Pentium and Celeron CPU per Intel Q67,DDR3,VGA,Dual Intel PCIe GbE,SATA 6Gb/s,mini PCIe,HD Audio,four RS-232,RoHS
    • Package Contents

      • 1 x PCIE-Q670 single board computer

      • 1 x Dual RS-232 cable (P/N: 19800-000051-RS)

      • 1 x USB cable (P/N: 19800-003100-300-RS) 1 x Mini jumper pack

      • 4 x SATA cable (P/N: 32000-062800-RS) 1 x QIG (Quick Installation Guide)

      • 1 x One Key Recovery CD 1 x Utility CD
